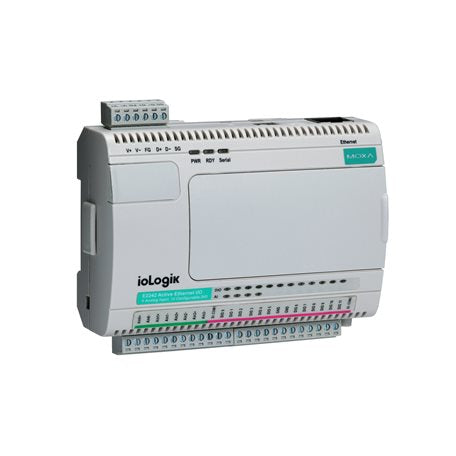

Moxa ioLogik E2260 | Ethernet Remote I/O, 6 RTD, 4 DO

Authorised Moxa Partner

SKU:ioLogik E2260

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa ioLogik E2260 is a smart Ethernet remote I/O unit with 6 RTD input channels and 4 digital outputs, built for temperature monitoring and on-off control over a standard 10/100 Mbps network. This standard temperature model operates from -10 to 60C and is suited to factory, process and building automation where several temperature points must be read and acted on from a single compact unit.

Front-end intelligence with Click&Go logic (up to 24 rules) lets the unit react locally and send active messages by SMS, SNMP trap, TCP or email without waiting on a central controller. Modbus TCP and SNMPv1/v2c/v3 support make it straightforward to integrate with SCADA, PLC and monitoring systems, and DIN-rail or wall mounting simplifies installation in a control cabinet.

Features

- Front-end intelligence with 24 Click&Go logic rules
- Active messaging with real-time stamp via SMS, SNMP trap with I/O status, TCP and email
- Supports SNMPv1/v2c/v3 for network management
- Modbus TCP server (slave) for SCADA and PLC integration
- I/O peer-to-peer function
- Built-in web console for configuration
- PC utility with auto detection of installed modules
- Windows/WinCE VB/VC.NET and Linux C APIs
- Compatible with MX-AOPC UA Server and MXIO software
- Plastic body design with DIN-rail and wall mounting

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 6 x RTD input channels
- 4 x digital output channels
- 1 x 10/100BaseT(X) RJ45 Ethernet port
- 1 x RS-485 serial port (terminal block), 2-wire Data+/Data-/GND
- Serial baudrate: 1200 to 115200 bps
- RTD resolution: 0.1 C or 0.1 ohms
- RTD accuracy: +/-0.1% FSR at 25 C; +/-0.3% FSR at -10 to 60 C
- RTD sampling: 12 samples/sec across all channels, 2 samples/sec per channel
- RTD input impedance: 625 kilo-ohms (min.)
- Isolation: 3k VDC or 2k Vrms
- Power input: 12 to 36 VDC
- Operating temperature: -10 to 60 C
- Storage temperature: -40 to 85 C
- Mounting: DIN-rail and wall mounting
- Safety: UL 508
- EMC: EN 61000-6-2/6-4, FCC Part 15B Class A
- Green product: RoHS, CRoHS, WEEE

FAQs

Q: What type of inputs and outputs does the ioLogik E2260 provide?
A: It provides 6 RTD input channels for temperature sensing and 4 digital output channels. It has no analog I/O, relay outputs or thermocouple inputs.

Q: What is the operating temperature range of this model?
A: The standard ioLogik E2260 operates from -10 to 60 C. A separate -T variant covers -40 to 75 C for harsher environments.

Q: Which protocols does the ioLogik E2260 support?
A: It supports Modbus TCP (server/slave), SNMPv1/v2c/v3, TCP/IP, UDP, DHCP, BOOTP, HTTP, SNTP and SMTP, allowing integration with most SCADA and monitoring systems.

Q: What does Click&Go logic do?
A: Click&Go lets you build up to 24 local if-then rules on the unit itself, so it can trigger outputs or send alerts by SMS, SNMP trap, TCP or email without a central controller.

Q: What power supply does it require?
A: It runs from a 12 to 36 VDC power input and includes over-voltage protection at 45 VDC (typical).

Q: How is the ioLogik E2260 mounted and connected?
A: It mounts on a DIN rail or directly on a wall. Connectivity is via one 10/100BaseT(X) RJ45 Ethernet port, with a 1 x RS-485 serial port on a terminal block.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
