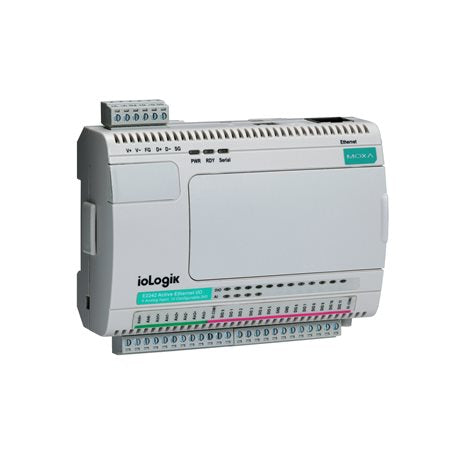

• Moxa ioLogik E2242 gray PLC controller with ports, Ethernet, Click&Go
1 1

Moxa

Moxa ioLogik E2242 | ioLogik E2200 Ethernet Remote I/O Controller, 4 AI, 12 DIO

Moxa ioLogik E2242 | ioLogik E2200 Ethernet Remote I/O Controller, 4 AI, 12 DIO

Authorised Moxa Partner

ioLogik E2242

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Moxa ioLogik E2242 is a universal Ethernet remote I/O controller from the ioLogik E2200 series, combining 12 software-configurable digital I/O channels with 4 analog inputs. It uses Click&Go control logic to deliver PC-free alarm and control intelligence, and pushes events and alarms to your monitoring system without constant polling. This standard temperature model operates from -10 to 60°C.

The analog inputs are 16-bit differential channels that accept both voltage and current signals, while the digital inputs support wet (NPN or PNP) and dry contacts. Digital outputs are sink type with pulse output capability, and the unit can be configured through the ioAdmin Windows utility or a web console. Modbus TCP and SNMP support make integration into SCADA and network management systems straightforward.

Features

- PC-free alarm and control intelligence with Click&Go technology
- Push technology for events and alarms
- SNMP support for NMS-based configuration and I/O status reporting
- Software-configurable DIO channels for flexible I/O allocation
- Wet (NPN or PNP) and dry contact digital input support
- Universal voltage and current analog inputs
- Pulse output capability on digital outputs
- Web console and Windows utility configuration

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 12 x software-configurable DIO channels
- 4 x analog inputs, differential, 16-bit resolution
- Analog input ranges: ±150 mV, 0 to 150 mV, ±500 mV, 0 to 500 mV, ±5 V, 0 to 5 V, ±10 V, 0 to 10 V, 0 to 20 mA, 4 to 20 mA
- Analog input accuracy: ±0.1% FSR @ 25°C, ±0.3% FSR @ -10 to 60°C
- Analog sampling rate: 32 samples/sec all channels, 8 samples/sec per channel, 100 samples/sec single channel
- Digital input sensor type: wet contact (NPN or PNP), dry contact
- Digital outputs: sink type, 200 mA per channel, 1 kHz pulse output
- Digital output over-voltage protection: 45 VDC (typical)
- Points per COM: 6 channels
- Isolation: 3k VDC or 2k Vrms
- Control logic: Click&Go
- Protocols: Modbus TCP, SNMP
- Configuration: ioAdmin Windows utility, web console (HTTP)
- Power consumption: 178 mA @ 24 VDC
- Operating temperature: -10 to 60°C
- Connectors: screw-fastened Euroblock terminals
- Built-in 120 ohm resistor for current input
- Reset button and rotary switch (0 to 9)

FAQs

Q: How many I/O channels does the ioLogik E2242 provide?
A: It provides 12 software-configurable digital I/O channels and 4 analog input channels.

Q: What types of analog signals can it accept?
A: The 4 differential, 16-bit analog inputs accept voltage and current signals, including ±150 mV, ±500 mV, ±5 V, ±10 V, 0 to 20 mA and 4 to 20 mA.

Q: What is Click&Go and why does it matter?
A: Click&Go is Moxa's control logic language that lets the controller run alarm and control rules locally, without a PC or PLC, based on if-then logic you configure in software.

Q: Which protocols and configuration tools are supported?
A: It supports Modbus TCP and SNMP, and can be configured using the ioAdmin Windows utility or the built-in web console.

Q: Can the digital channels be used as both inputs and outputs?
A: Yes, the 12 DIO channels are software-configurable. Inputs support wet (NPN or PNP) and dry contacts, and outputs are sink type rated at 200 mA per channel with 1 kHz pulse output.

Q: What operating temperature range does this model support?
A: This is the standard temperature model, rated for -10 to 60°C. It is not the wide temperature (-T) variant.
