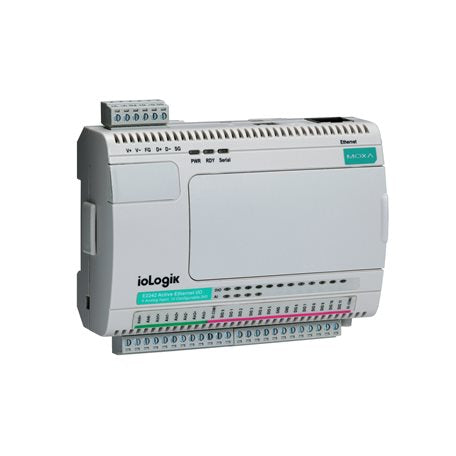

Moxa ioLogik E2240 | ioLogik E2200 Universal Controller, 8 AI, 2 AO, Ethernet Remote I/O

Authorised Moxa Partner

SKU:ioLogik E2240

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa ioLogik E2240 is an Ethernet remote I/O unit and universal controller with 8 analog inputs and 2 analog outputs, designed for process monitoring and control in industrial automation. This standard temperature model operates from -10 to 60°C and uses Click&Go control logic to build local control rules without programming.

The ioLogik E2240 pairs a 10/100 Mbps Ethernet port with an RS-485 serial port, giving flexible connectivity for SCADA, PLC and building automation integration. Differential analog inputs with 16-bit resolution and voltage or current outputs with 12-bit resolution suit sensor and actuator interfacing. A wide-temperature variant, the E2240-T, is available for harsher environments.

Features

- Click&Go control logic for building local control rules without programming
- Ethernet remote I/O with an RS-485 serial port
- Built-in 120 ohm resistor for current input
- Rotary switch (0 to 9) and reset button
- LED indicators for power, ready, serial and I/O status

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 8 x analog inputs, differential, voltage or current, 16-bit resolution
- 2 x analog outputs, voltage or current, 12-bit resolution
- AI ranges: ±150 mV, ±500 mV, ±5 V, ±10 V, 0-20 mA, 4-20 mA
- AO ranges: 0-10 VDC, 4-20 mA
- Accuracy: ±0.1% FSR at 25°C, ±0.3% FSR at -10 to 60°C
- 1 x 10/100BaseT(X) Ethernet port (RJ45), 1.5 kV magnetic isolation
- 1 x RS-485 serial port (terminal block)
- Isolation: 3k VDC or 2k Vrms
- Power input: 12 to 36 VDC, 198 mA at 24 VDC
- Real-time clock with battery backup
- Operating temperature: -10 to 60°C
- Dimensions: 115 x 79 x 45.6 mm
- Screw-fastened Euroblock terminals

FAQs

Q: How many analog inputs and outputs does the ioLogik E2240 provide?
A: It provides 8 differential analog inputs with 16-bit resolution and 2 analog outputs with 12-bit resolution.

Q: What signal ranges does the ioLogik E2240 support?
A: Analog inputs support ±150 mV, ±500 mV, ±5 V, ±10 V, 0-20 mA and 4-20 mA. Analog outputs support 0-10 VDC and 4-20 mA.

Q: What is Click&Go logic?
A: Click&Go is Moxa's control logic feature that lets you build local if-then control rules on the unit without writing code.

Q: What operating temperature does this model support?
A: The ioLogik E2240 operates from -10 to 60°C. For -40 to 75°C environments, the wide-temperature E2240-T model is the alternative.

Q: What power supply does the ioLogik E2240 need?
A: It accepts a 12 to 36 VDC input and draws 198 mA at 24 VDC.

Q: What communication interfaces are included?
A: It includes one 10/100BaseT(X) RJ45 Ethernet port and one RS-485 serial port on a terminal block.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
