Moxa ioLogik E2240-T | Universal Controller, 8 AI 2 AO, -40 to 75°C

Authorised Moxa Partner

SKU:ioLogik E2240-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

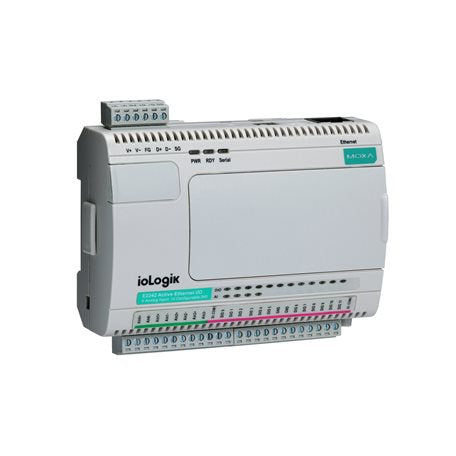

The Moxa ioLogik E2240-T is a universal controller and smart Ethernet remote I/O unit with 8 analog inputs and 2 analog outputs, programmed using Click&Go control logic. This -T model has a wide operating temperature range of -40 to 75°C, making it suited to harsh industrial environments where the standard ioLogik E2240 (-10 to 60°C) would not be rated.

The ioLogik E2240-T supports Modbus TCP and a versatile set of OT/IT protocols for IIoT data acquisition, with SNMPv3 and HMAC encryption for secure communication. It suits energy monitoring, facility monitoring and machine OEM applications that need local control logic and active, event-based reporting at the edge.

Features

- Click&Go control logic with active and event-based monitoring and reporting
- Supports a versatile set of OT/IT protocols for IIoT applications
- Security with SNMPv3, HMAC encryption and local database authentication
- Suited to energy monitoring, facility monitoring and machine OEM applications
- Wide-temperature (-T) model for harsh environments

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 8 x analog input channels (voltage/current, differential, 16-bit resolution)
- 2 x analog output channels (0 to 10 VDC or 4 to 20 mA, 12-bit)
- AI ranges: ±150 mV, ±500 mV, ±5 V, ±10 V, 0 to 20 mA, 4 to 20 mA
- AI accuracy: ±0.1% FSR @ 25°C, ±0.3% FSR @ -10 to 60°C, ±0.5% FSR @ -40 to 75°C
- AI sampling rate (all channels): 10 samples/sec for voltage, 6 samples/sec for current
- Screw-fastened Euroblock terminal connectors
- Isolation: 3k VDC or 2k Vrms
- Control logic language: Click&Go
- Reset button and rotary switch (0 to 9)
- Modbus TCP server (slave), functions 1, 2, 3, 4, 5, 6, 15, 16
- Operating temperature: -40 to 75°C (-40 to 167°F)
- Storage temperature: -40 to 85°C (-40 to 185°F)
- Ambient relative humidity: 5 to 95% (non-condensing)

FAQs

Q: What is the difference between the ioLogik E2240-T and the ioLogik E2240?
A: The E2240-T is the wide-temperature model, rated for -40 to 75°C operation. The standard ioLogik E2240 is rated for -10 to 60°C.

Q: How many analog inputs and outputs does the ioLogik E2240-T provide?
A: It provides 8 analog input channels (voltage or current, 16-bit resolution) and 2 analog output channels (0 to 10 VDC or 4 to 20 mA, 12-bit).

Q: How is the ioLogik E2240-T programmed?
A: It uses Click&Go control logic, allowing active and event-based monitoring and reporting to be configured on the device itself.

Q: Which industrial protocols does the ioLogik E2240-T support?
A: It operates as a Modbus TCP server (slave) supporting functions 1, 2, 3, 4, 5, 6, 15 and 16, along with a versatile set of OT/IT protocols for IIoT applications.

Q: Which analog input ranges are supported?
A: Input ranges include ±150 mV, ±500 mV, ±5 V, ±10 V, 0 to 20 mA and 4 to 20 mA.

Q: What security options does the ioLogik E2240-T offer?
A: It supports SNMPv3, HMAC encryption and local database authentication.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
