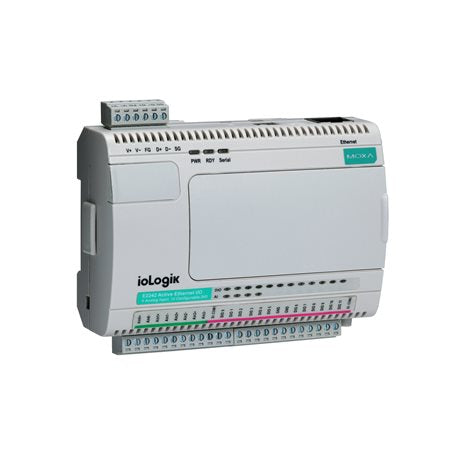

Moxa ioLogik E2212-T | ioLogik E2200 Ethernet Remote I/O, 8DI 8DO 4DIO, -40 to 75°C

Authorised Moxa Partner

SKU:ioLogik E2212-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa ioLogik E2212-T is an industrial Ethernet remote I/O controller from the ioLogik E2200 series, providing 8 digital inputs, 8 digital outputs and 4 software-configurable DIO channels. This wide-temperature model operates from -40 to 75°C, making it suited to harsh factory floors, outdoor cabinets and remote monitoring sites. Built-in Click&Go control logic lets you create local intelligence and event-driven actions without programming.

A single 10/100BaseT(X) RJ45 port connects the unit to the network, with Modbus TCP Server and SNMPv1/v2c/v3 support for integration with SCADA and monitoring systems. An onboard RS-485 port acts as a Modbus RTU Master for polling serial devices. The unit runs from a 12 to 36 VDC supply and mounts on a DIN-rail or wall.

Features

- Click&Go control logic for local intelligence without programming
- Active monitoring via Moxa AOPC (Active Tag) and MXIO library
- Supports Modbus TCP and SNMP protocols
- Wide operating temperature range of -40 to 75°C
- Software-configurable DIO channels, DI event counter and pulse output
- Built-in RS-485 port with Modbus RTU Master
- Configuration via ioAdmin Windows utility or web console

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 8 x digital inputs, 8 x digital outputs, 4 x software-configurable DIO channels
- DI sensor types: dry contact and wet contact (NPN or PNP)
- DI counter frequency: 900 Hz
- DO type: sink, 200 mA per channel, pulse output up to 1 kHz
- 1 x 10/100BaseT(X) RJ45 port with 1.5 kV magnetic isolation
- 1 x RS-485 serial port (terminal block), Modbus RTU Master, 1200 to 115200 bps
- Protocols: Modbus TCP Server (Slave), SNMPv1/v2c/v3, SNMPv1 Trap, Moxa AOPC, MXIO Library, CGI commands
- Isolation: 3k VDC or 2k Vrms
- Power input: 12 to 36 VDC, 136 mA @ 24 VDC
- Real-time clock with battery backup
- Operating temperature: -40 to 75°C
- Storage temperature: -40 to 85°C
- Dimensions: 115 x 79 x 45.6 mm, weight 250 g
- DIN-rail or wall mounting
- Safety: UL 508, EMC: EN 61000-6-2/-6-4, FCC Part 15B Class A
- MTBF: 217,722 hrs (Telcordia SR332)

FAQs

Q: What does the -T in ioLogik E2212-T mean?
A: The -T suffix denotes the wide-temperature model, which operates from -40 to 75°C.

Q: How many I/O channels does the ioLogik E2212-T provide?
A: It provides 8 digital inputs, 8 digital outputs and 4 DIO channels that can be configured as inputs or outputs by software.

Q: Which protocols does it support?
A: It supports Modbus TCP Server (Slave), SNMPv1/v2c/v3, SNMPv1 Trap, Moxa AOPC (Active Tag), the MXIO library and CGI commands.

Q: Can it connect to serial Modbus devices?
A: Yes. The built-in RS-485 port operates as a Modbus RTU Master, so the unit can poll serial slave devices.

Q: What power supply does it need?
A: It runs from a 12 to 36 VDC input and draws 136 mA at 24 VDC.

Q: How is it configured and mounted?
A: Configure it with the ioAdmin Windows utility or the HTTP web console. It mounts on a DIN-rail or directly on a wall.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
