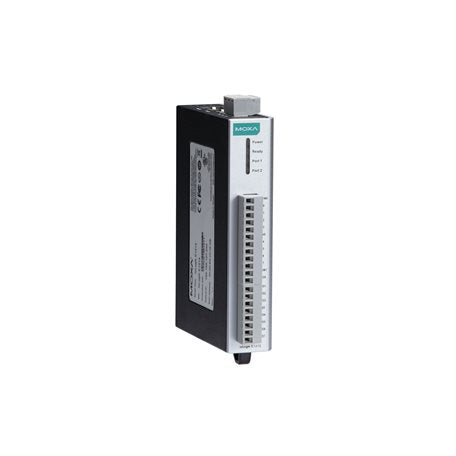

Moxa ioLogik E1262-T | Ethernet Remote I/O, 8 Thermocouple, -40 to 75C

Authorised Moxa Partner

SKU:ioLogik E1262-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa ioLogik E1262-T is an Ethernet remote I/O module with 8 thermocouple input channels, built for temperature monitoring in industrial automation, energy and process applications. It supports J, K, T, E, R, S, B and N thermocouple types with 16-bit converter resolution, and operates across a -40 to 75°C wide temperature range for harsh environments.

A built-in 2-port 10/100 Ethernet switch allows daisy-chain topologies that cut cabling and switch port requirements. The module speaks Modbus TCP Server and EtherNet/IP Adapter, integrates through a RESTful API, SNMPv1/v2c and the Moxa MXIO library, and can be configured via web console, the ioSearch utility or the MCC Tool. It accepts 12 to 36 VDC power and mounts on a DIN rail or wall.

Features

- Built-in 2-port Ethernet switch for daisy-chain topologies
- Supports Modbus TCP Server and EtherNet/IP Adapter protocols
- Supports RESTful API, SNMPv1/v2c and the Moxa AOPC/MXIO library
- Click&Go control logic with active monitoring technology
- Wide operating temperature range of -40 to 75°C
- Hazardous location approvals (ATEX, Class I Division 2)
- Screw-fastened Euroblock terminals for secure field wiring

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 8 x thermocouple input channels
- Sensor types: J, K, T, E, R, S, B, N
- Millivolt input: ±19.532 mV, ±39.062 mV, ±78.126 mV
- 16-bit converter resolution
- Sampling rate: 12 samples/sec per module, shared across up to 8 channels
- Isolation: 3k VDC or 2k Vrms
- 2 x 10/100BaseT(X) RJ45 ports, switched, 1 MAC address
- Protocols: Modbus TCP Server (Slave), EtherNet/IP Adapter, Moxa AOPC, MXIO Library
- Management: RESTful API, SNMPv1/v2c, SNMPv1 Trap, HTTP, DHCP Client, BOOTP
- Modbus TCP: up to 10 client connections
- Power input: 12 to 36 VDC via screw-fastened Euroblock terminal
- Operating temperature: -40 to 75°C (-40 to 167°F)
- Storage temperature: -40 to 85°C (-40 to 185°F)
- Humidity: 5 to 95% non-condensing
- Dimensions: 27.8 x 124 x 84 mm, weight 200 g
- Mounting: DIN-rail or wall
- Approvals: ATEX, Class I Division 2, UL 508, KC, UKCA
- Warranty period: 5 years

FAQs

Q: Which thermocouple types does the ioLogik E1262-T support?
A: It supports J, K, T, E, R, S, B and N thermocouple types, and also accepts millivolt inputs of ±19.532 mV, ±39.062 mV and ±78.126 mV.

Q: How many thermocouple channels does it have?
A: The E1262-T provides 8 thermocouple input channels with 16-bit converter resolution.

Q: Which industrial protocols does the E1262-T support?
A: It operates as a Modbus TCP Server (Slave) and an EtherNet/IP Adapter, and also supports the Moxa AOPC (Active Tag) and MXIO library, plus RESTful API and SNMPv1/v2c for management.

Q: Can I daisy-chain multiple units?
A: Yes. The built-in 2-port 10/100BaseT(X) switch lets you daisy-chain units, which reduces cabling and the number of switch ports needed.

Q: What operating temperature range is supported?
A: The E1262-T operates from -40 to 75°C (-40 to 167°F), making it suitable for harsh industrial environments.

Q: How is the module powered and mounted?
A: It takes a 12 to 36 VDC input through a screw-fastened Euroblock terminal and mounts on a DIN rail or directly on a wall.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
