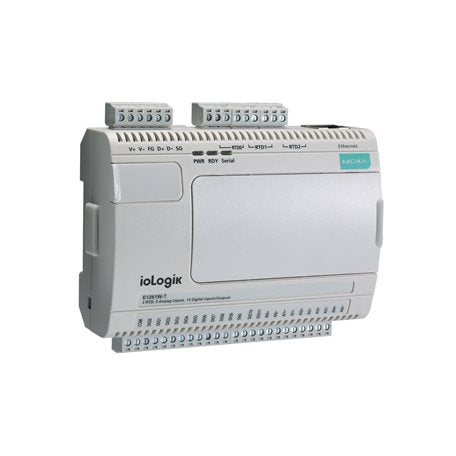

Moxa ioLogik-E1261W-T | ioLogik E1261W-T Remote Ethernet I/O, 12 DIO, 5 AI, 3 RTD, -40 to 75C

Authorised Moxa Partner

SKU:ioLogik-E1261W-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa ioLogik E1261W-T is a remote Ethernet I/O unit from the ioLogik E1200W Series, combining 12 software-configurable DIO channels, 5 analog inputs and 3 RTD channels in a single compact unit. It is built for remote condition monitoring such as wind turbines and environmental sensing, and its -40 to 75°C operating range suits harsh outdoor and unconditioned installations.

The unit supports Modbus TCP slave communication and active push reporting to MX-AOPC UA Server, so field data reaches SCADA systems without constant polling. A 10/100BaseT(X) Ethernet port and an RS-485 port (Modbus RTU slave) provide flexible connectivity, and DIN-rail or wall mounting simplifies installation. Configuration is handled through a web console or the ioSearch Windows utility, which also makes mass deployment straightforward.

Features

- User-definable Modbus TCP slave addressing
- Active communication with MX-AOPC UA Server using push and report-by-exception
- Mass deployment and configuration with the ioSearch utility
- Browser-based web console configuration
- MXIO library simplifies I/O management on Windows or Linux
- Wide operating temperature range of -40 to 75°C
- Combined DIO, analog input and RTD channels in one compact unit

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 3 x RTD channels (PT50, PT100, PT200, PT500, 2- or 3-wire, -200 to 850°C)
- 5 x analog input channels (0-10 VDC, 0-20 mA, 4-20 mA, 16-bit resolution)
- 12 x software-configurable DIO channels
- DI counter frequency 250 Hz, DO pulse output frequency 500 Hz
- Digital outputs: sink type, 200 mA per channel
- 1 x 10/100BaseT(X) Ethernet port (RJ45) with 1.5 kV magnetic isolation
- 1 x RS-485 serial port (2-wire), Modbus RTU slave, 1200 bps to 115.2 kbps
- Protocols: Modbus TCP server (slave), Moxa AOPC (Active Tag), MXIO library
- Power input: 12 to 36 VDC, 143 mA @ 24 VDC
- Isolation: 3k VDC or 2k Vrms
- Dimensions: 115 x 79 x 40.4 mm, weight 250 g
- Operating temperature: -40 to 75°C
- Mounting: DIN-rail or wall
- Approvals: UL 508, EN 55032/24
- MTBF: 367,508 hrs (Telcordia SR332)

FAQs

Q: What types of I/O does the ioLogik E1261W-T provide?
A: It provides 12 software-configurable DIO channels, 5 analog input channels (0-10 VDC, 0-20 mA, 4-20 mA, 16-bit) and 3 RTD channels supporting PT50, PT100, PT200 and PT500 sensors in 2- or 3-wire connection.

Q: Which communication protocols does it support?
A: It supports Modbus TCP server (slave) over Ethernet, Modbus RTU slave over RS-485, and Moxa AOPC active tag communication to MX-AOPC UA Server. The MXIO library is available for Windows and Linux.

Q: What is the operating temperature range?
A: The E1261W-T operates from -40 to 75°C (-40 to 167°F), making it suitable for outdoor and harsh-environment monitoring.

Q: What power supply does it require?
A: It needs a 12 to 36 VDC input via a screw-fastened Euroblock terminal, drawing 143 mA at 24 VDC.

Q: How is the unit mounted and configured?
A: It mounts on a DIN rail or directly on a wall. Configuration is done via the built-in web console over HTTP or with the ioSearch Windows utility, which also supports mass deployment.

Q: What applications is this model designed for?
A: The ioLogik E1200W Series is designed for remote condition monitoring such as wind turbines and environmental sensing, where its RTD inputs, wide temperature range and active push reporting to SCADA are most useful.
