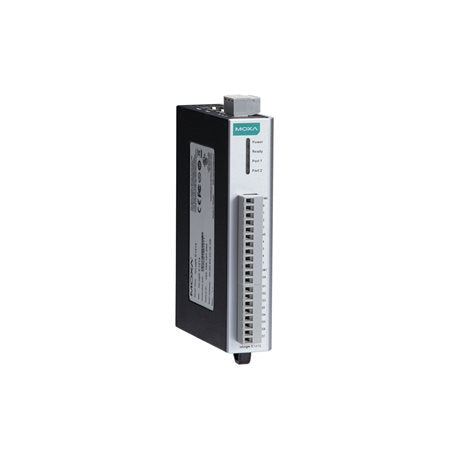

Moxa ioLogik E1260-T | 6-Channel RTD Remote I/O, -40 to 75°C

Authorised Moxa Partner

SKU:ioLogik E1260-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa ioLogik E1260-T is a 6-channel RTD remote I/O module for industrial Ethernet networks, built to read PT50, PT100, PT200, PT500 and PT1000 temperature sensors over 2- or 3-wire connections. As the wide-temperature -T variant it operates from -40 to 75°C, making it suited to outdoor cabinets, process plants and unheated enclosures. A built-in 2-port 10/100 Ethernet switch allows daisy-chain wiring between modules, reducing cabling and switch port requirements.

The unit supports Modbus TCP Server, EtherNet/IP Adapter, SNMP v1/v2c, RESTful API and Moxa AOPC tag communication, with the MXIO library available for Windows and Linux integration. Configuration is handled through a web console, the ioSearch utility or the MCC Tool, and the module mounts on a DIN rail or wall. Class I Division 2 and ATEX Zone 2 hazardous location certification supports deployment in regulated environments.

Features

- Wide operating temperature range of -40 to 75°C
- Built-in 2-port Ethernet switch for daisy-chain topologies
- Modbus TCP Server with user-definable slave addressing
- EtherNet/IP Adapter mode for PLC integration
- RESTful API support for IIoT applications
- Active communication with MX-AOPC UA Server
- Peer-to-peer communications to save wiring costs
- SNMP v1/v2c for network monitoring
- Mass deployment and configuration with the ioSearch utility
- Web browser configuration
- MXIO library for Windows and Linux
- Class I Division 2 and ATEX Zone 2 certification

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 6 x RTD input channels, 2- or 3-wire
- Sensor types: PT50, PT100, PT200, PT500 (-200 to 850°C), PT1000 (-200 to 350°C)
- RTD resolution 0.1°C or 0.1 ohms
- RTD accuracy ±0.1% FSR @ 25°C, ±0.3% FSR @ -40 to 75°C
- Sampling rate 12 samples/sec per module, shared between enabled channels
- 2 x 10/100BaseT(X) RJ45 ports with Ethernet bypass, 1 MAC address
- Isolation 3k VDC or 2k Vrms, 1.5 kV magnetic isolation on Ethernet ports
- Input voltage 12 to 36 VDC, 110 mA @ 24 VDC
- Operating temperature -40 to 75°C
- Storage temperature -40 to 85°C
- Humidity 5 to 95% non-condensing
- Dimensions 27.8 x 124 x 84 mm, weight 200 g
- DIN-rail or wall mounting
- Screw-fastened Euroblock terminals for I/O and power
- Certifications: ATEX, Class I Division 2, UL 508, RoHS, CRoHS, WEEE
- MTBF 660,260 hrs (Telcordia SR-332)

FAQs

Q: Which RTD sensor types does the ioLogik E1260-T support?
A: It supports PT50, PT100, PT200 and PT500 sensors (-200 to 850°C) and PT1000 sensors (-200 to 350°C), using 2- or 3-wire connections.

Q: What is the difference between the E1260-T and the standard E1260?
A: The -T model is the wide-temperature variant, operating from -40 to 75°C, which suits harsh outdoor and unheated industrial environments.

Q: Which industrial protocols does it support?
A: Modbus TCP Server, EtherNet/IP Adapter, Moxa AOPC, the MXIO library, SNMP v1/v2c and a RESTful API.

Q: Can I daisy-chain multiple units?
A: Yes. The two built-in 10/100BaseT(X) RJ45 ports act as an Ethernet switch, allowing units to be daisy-chained to reduce cabling and switch port use.

Q: What power supply does it require?
A: It runs from 12 to 36 VDC through a screw-fastened Euroblock terminal and draws 110 mA at 24 VDC.

Q: Can it be installed in hazardous locations?
A: It carries Class I Division 2 and ATEX Zone 2 certification, so it is suitable for those classified environments when installed correctly.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
