Moxa ioLogik-E1242 | ioLogik E1242 Remote Ethernet I/O, 4 DI, 4 DIO, 4 AI

Authorised Moxa Partner

SKU:ioLogik E1242

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

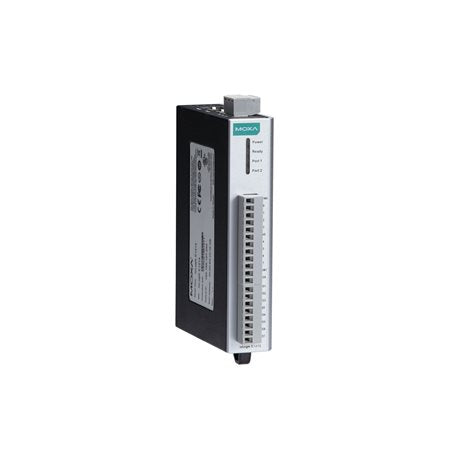

The Moxa ioLogik E1242 is a DIN-rail remote Ethernet I/O unit from the ioLogik E1200 series, providing 4 analog inputs, 4 digital inputs and 4 configurable DIO channels (sink type). It suits factory automation, building and process monitoring where field signals need to be brought onto an Ethernet network. The standard model operates from -10 to 60°C.

A built-in 2-port 10/100 Ethernet switch allows units to be daisy-chained, reducing cabling and switch port requirements. The E1242 supports Modbus TCP Server, EtherNet/IP Adapter, RESTful API and SNMP v1/v2c, and can be configured through a web console or the ioSearch utility for mass deployment.

Features

- 2-port Ethernet switch for daisy-chain topologies
- Modbus TCP Server with user-definable slave addressing
- EtherNet/IP Adapter mode support
- RESTful API for IIoT applications
- Peer-to-peer communications to save time and wiring costs
- Active communication with MX-AOPC UA Server
- SNMP v1/v2c support
- Mass deployment and configuration with the ioSearch utility
- Web browser configuration
- MXIO library for Windows and Linux
- Class I Division 2 and ATEX Zone 2 certification

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 4 x analog inputs, voltage/current, 16-bit resolution
- 4 x digital inputs, dry contact or wet contact (NPN or PNP)
- 4 x configurable DIO channels (by jumper), sink type, 200 mA per channel
- AI input ranges: 0 to 10 VDC, 0 to 20 mA, 4 to 20 mA (with burn-out detection)
- AI accuracy: ±0.1% FSR at 25°C
- DI counter frequency: 250 Hz, DO pulse output up to 500 Hz
- 2 x 10/100BaseT(X) RJ45 ports (Ethernet switch)
- Isolation: 3k VDC or 2k Vrms
- Power input: 12 to 36 VDC, 139 mA at 24 VDC
- Operating temperature: -10 to 60°C
- Dimensions: 27.8 x 124 x 84 mm, weight 200 g
- DIN-rail or wall mounting
- Certifications: UL 508, ATEX, Class I Division 2

FAQs

Q: How many I/O channels does the ioLogik E1242 provide?
A: It provides 4 analog inputs, 4 digital inputs and 4 configurable DIO channels, giving 12 channels in total.

Q: Are the DIO channels sink or source type?
A: The digital output channels on the E1242 are sink type, rated at 200 mA per channel.

Q: Which industrial protocols does the E1242 support?
A: It supports Modbus TCP Server, EtherNet/IP Adapter, Moxa AOPC (Active Tag), the MXIO library, RESTful API and SNMP v1/v2c.

Q: Can I daisy-chain multiple E1242 units?
A: Yes. The built-in 2-port Ethernet switch allows units to be daisy-chained, reducing the number of switch ports and cabling required.

Q: What is the operating temperature range?
A: This model operates from -10 to 60°C. A wide-temperature E1242-T variant for -40 to 75°C is a separate model.

Q: What analog input signals does it accept?
A: The analog inputs accept 0 to 10 VDC, 0 to 20 mA and 4 to 20 mA signals, the latter with burn-out detection, at 16-bit resolution.
