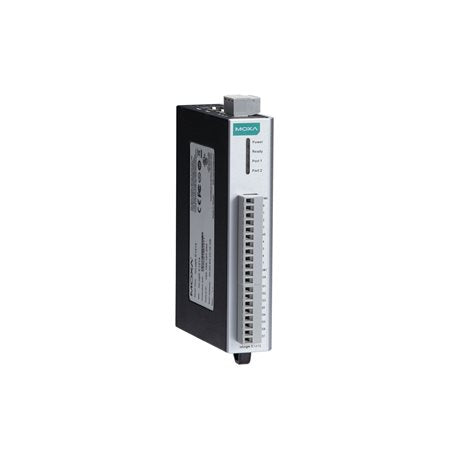

Moxa ioLogik E1241-T | Remote I/O, 4x Analog Output, -40 to 75C

Authorised Moxa Partner

SKU:ioLogik E1241-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The ioLogik E1241-T is a wide-temperature Ethernet remote I/O unit with 4 analog output channels, supporting voltage and current output modes. It suits factory automation, process control and remote monitoring deployments, and is rated for operation from -40 to 75°C, making it a good fit for outdoor enclosures, cabinets and unconditioned plant rooms.

Two switched 10/100BaseT(X) RJ45 ports allow daisy-chain topologies without an external switch, reducing cabling and port requirements. The unit accepts a 12 to 36 VDC supply and mounts on a DIN rail or a wall, with screw-fastened Euroblock terminals for I/O and power wiring.

Features

- Wide operating temperature range of -40 to 75°C
- Two-port Ethernet switch for daisy-chain topologies
- Push technology for event-based reporting
- Voltage or current analog output modes
- Supports DIN-rail and wall mounting
- Reset button on the unit

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 4 x analog output channels, voltage or current mode
- Output range: 0 to 10 VDC, 0 to 20 mA, 4 to 20 mA
- 12-bit converter resolution
- Accuracy: ±0.1% FSR at 25°C, ±0.3% FSR at -40 to 75°C
- Isolation: 3k VDC or 2k Vrms
- Current mode load: 400 ohms max. with internal power, 1000 ohms max. with 24 V external power
- Voltage output short-circuit protection: 10 mA
- 2 x 10/100BaseT(X) RJ45 ports, switched, 1 MAC address
- Magnetic isolation protection: 1.5 kV built-in
- Input voltage: 12 to 36 VDC
- Power consumption: 130 mA at 24 VDC
- Screw-fastened Euroblock terminals for I/O and power
- Wiring: I/O cable 16 to 22 AWG, power cable 12 to 20 AWG
- Operating temperature: -40 to 75°C (-40 to 167°F)
- Ambient relative humidity: 5 to 95% (non-condensing)
- Altitude: 4000 m
- Housing: plastic, weight 200 g
- Mounting: DIN-rail or wall
- Standards: EN 55032/35, EN 61000-6-2/-6-4, CISPR 32, FCC Part 15B Class A

FAQs

Q: How many analog outputs does the ioLogik E1241-T provide?
A: It provides 4 analog output channels. Each channel supports voltage or current output modes.

Q: What output ranges are supported?
A: The unit supports 0 to 10 VDC, 0 to 20 mA and 4 to 20 mA output ranges, with 12-bit converter resolution.

Q: What is the operating temperature range?
A: The E1241-T operates from -40 to 75°C (-40 to 167°F), which is why it is suited to harsh and unconditioned environments.

Q: Can I daisy-chain multiple units?
A: Yes. The two switched 10/100BaseT(X) RJ45 ports let you daisy-chain units on a single network connection without an external switch.

Q: What power supply does it need?
A: It requires a 12 to 36 VDC input via a screw-fastened Euroblock terminal, drawing 130 mA at 24 VDC.

Q: How is the unit mounted?
A: It can be mounted on a DIN rail or directly on a wall.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
