Description

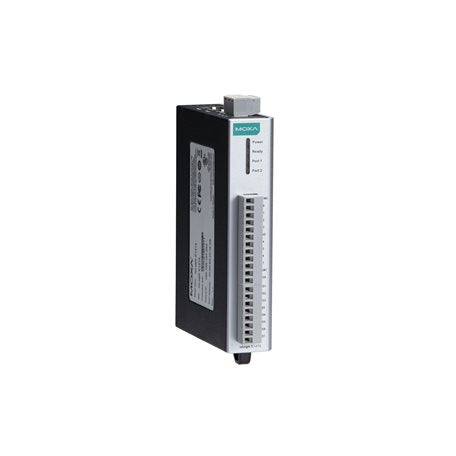

The ioLogik E1241 is an industrial Ethernet remote I/O unit with 4 analog output channels (0 to 10 VDC or 4 to 20 mA, 12-bit) and a built-in 2-port Ethernet switch for daisy-chain topologies. Part of the ioLogik E1200 Series, this standard temperature model operates from -10 to 60°C and suits PLC and SCADA integration, process control and factory automation.

It supports Modbus TCP, EtherNet/IP adapter mode, RESTful API, SNMP v1/v2c and active tag communication with MX-AOPC UA Server. Configuration is handled through a web console or the ioSearch utility, and the unit mounts on a DIN-rail or wall. Class I Division 2 and ATEX Zone 2 certification allows deployment in hazardous locations.

Features

- Built-in 2-port Ethernet switch for daisy-chain topologies
- Supports EtherNet/IP Adapter mode and Modbus TCP Server with user-definable addressing
- RESTful API support for IIoT applications
- Peer-to-peer communications save time and wiring costs
- Active communication with MX-AOPC UA Server
- SNMP v1/v2c support for network monitoring
- Easy mass deployment and configuration with the ioSearch utility
- Browser-based web console configuration
- MXIO library for Windows and Linux
- Class I Division 2 and ATEX Zone 2 certified

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 4 x analog output channels, 0 to 10 VDC or 4 to 20 mA, 12-bit resolution
- Analog output accuracy: ±0.1% FSR @ 25°C; ±0.3% FSR @ -10 to 60°C
- 2 x 10/100BaseT(X) RJ45 ports (Ethernet switch, 1 MAC address)
- Isolation: 3k VDC or 2k Vrms
- Input voltage: 12 to 36 VDC, 194 mA @ 24 VDC
- Protocols: EtherNet/IP Adapter, Modbus TCP Server (up to 10 connections), Moxa AOPC, MXIO Library
- Management: web console (HTTP), ioSearch utility, RESTful API, SNMPv1/v2c, DHCP, BOOTP
- Operating temperature: -10 to 60°C
- Dimensions: 27.8 x 124 x 84 mm, weight 200 g
- DIN-rail or wall mounting
- Hazardous locations: Class I Division 2, ATEX Zone 2
- Safety: UL 508
- MTBF: 888,656 hrs (Telcordia SR332)

FAQs

Q: What analog output signals does the ioLogik E1241 support?
A: It provides 4 analog output channels, each supporting 0 to 10 VDC or 4 to 20 mA with 12-bit resolution.

Q: Can the ioLogik E1241 be daisy-chained?
A: Yes. The built-in 2-port 10/100 Ethernet switch lets you daisy-chain units, reducing cabling and switch port requirements.

Q: Which industrial protocols does it support?
A: It supports Modbus TCP Server, EtherNet/IP Adapter, Moxa AOPC (active tag), a RESTful API and SNMP v1/v2c.

Q: What is the operating temperature range?
A: This standard temperature model operates from -10 to 60°C.

Q: What power supply does it need?
A: It requires a 12 to 36 VDC input and draws 194 mA at 24 VDC. A 24 V external supply is needed if the output loading exceeds 1000 ohms.

Q: Can it be installed in hazardous locations?
A: Yes. It is certified for Class I Division 2 and ATEX Zone 2 environments.
