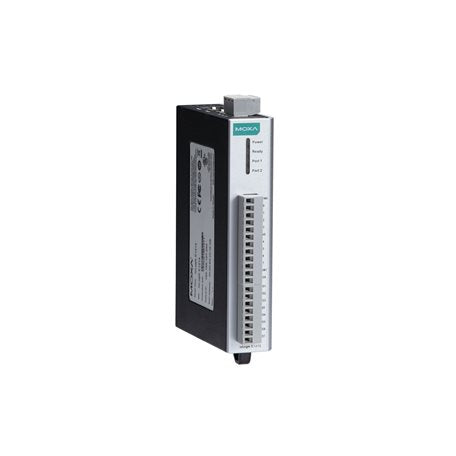

Moxa ioLogik E1214-T | ioLogik E1200 Ethernet Remote I/O, 6 DI, 6 Relay, -40 to 75°C

Authorised Moxa Partner

SKU:ioLogik E1214-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa ioLogik E1214-T is a rugged universal Ethernet remote I/O unit with 6 digital inputs and 6 Form A power relay outputs, built for industrial automation and remote monitoring. Its extended -40 to 75°C operating temperature range suits unheated cabinets, outdoor enclosures and harsh plant environments, and it supports Modbus TCP, EtherNet/IP, SNMP and RESTful API for straightforward integration with PLCs and SCADA systems.

Two switched 10/100BaseT(X) RJ45 ports allow daisy-chain topologies without an external switch, reducing cabling and cost. Digital inputs accept dry or wet contacts and can also operate as event counters, while the relay outputs can run in pulse mode. Configuration is handled through the web console, the ioSearch utility or the MCC Tool, with DIN-rail or wall mounting and hazardous location approvals including ATEX and Class I Division 2.

Features

- Two-port Ethernet switch for daisy-chain topologies
- Supports Modbus TCP, EtherNet/IP, Moxa AOPC, SNMP, RESTful API and the MXIO library
- Dry or wet contact digital inputs that can also work as event counters
- Relay outputs can also be used in pulse output mode
- Wide -40 to 75°C operating temperature range
- ATEX and Class I Division 2 hazardous location approvals
- Web console, ioSearch utility and MCC Tool for configuration

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 6 x digital inputs (dry or wet contact), usable as event counters up to 250 Hz
- 6 x Form A (N.O.) power relays, 5 A resistive at 30 VDC, 250 VAC, 110 VAC
- Relay or pulse output mode, pulse output up to 0.3 Hz at rated load
- 2 x 10/100BaseT(X) RJ45 Ports (switched), 1 MAC address
- Isolation: 3k VDC or 2k Vrms
- Power input: 12 to 36 VDC via screw-fastened Euroblock terminal
- Protocols: Modbus TCP Server, EtherNet/IP Adapter, Moxa AOPC, SNMPv1/v2c, RESTful API, MXIO Library
- Modbus TCP: up to 10 client connections, functions 1, 2, 3, 4, 5, 6, 15, 16, 23
- Operating temperature: -40 to 75°C (-40 to 167°F)
- Storage temperature: -40 to 85°C (-40 to 185°F)
- Humidity: 5 to 95% (non-condensing)
- Dimensions: 27.8 x 124 x 84 mm, weight 200 g
- DIN-rail or wall mounting
- Approvals: UL 508, ATEX, Class I Division 2
- MTBF: 6,534,412 hrs (Telcordia SR-332)

FAQs

Q: What is the operating temperature range of the ioLogik E1214-T?
A: The E1214-T operates from -40 to 75°C (-40 to 167°F), making it suitable for unheated or outdoor industrial enclosures.

Q: Which industrial protocols does the ioLogik E1214-T support?
A: It supports Modbus TCP Server, EtherNet/IP Adapter, Moxa AOPC, SNMPv1/v2c and a RESTful API, and works with the MXIO library.

Q: What type of digital inputs and relay outputs does it provide?
A: It has 6 digital inputs that accept dry or wet contacts (NPN or PNP) and can act as event counters, plus 6 Form A (N.O.) power relays rated 5 A resistive.

Q: Can I daisy-chain multiple units?
A: Yes. The two switched 10/100BaseT(X) RJ45 ports share one MAC address and let you daisy-chain units without an external switch.

Q: What power supply does the ioLogik E1214-T require?
A: It needs a 12 to 36 VDC supply connected to the screw-fastened Euroblock terminal.

Q: How is the unit mounted and configured?
A: It mounts on a DIN rail or a wall, and is configured through the web console, the ioSearch Windows utility or the MCC Tool.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
