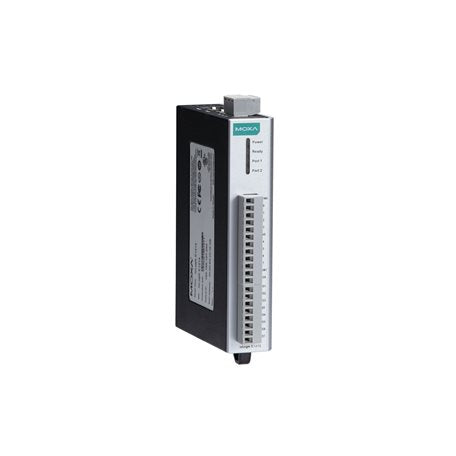

Moxa ioLogik E1210-T | Remote I/O Module, 16 DI, -40 to 75°C

Authorised Moxa Partner

SKU:ioLogik E1210-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa ioLogik E1210-T is a universal Ethernet remote I/O module with 16 digital input channels and a built-in 2-port Ethernet switch. The -T variant is rated for a wide operating temperature range of -40 to 75°C, making it suited to outdoor cabinets, factory floors and other harsh industrial environments where standard I/O units would fail.

Each channel can be configured as a digital input or an event counter, and the module accepts both wet contact (NPN/PNP) and dry contact sensors. The dual RJ45 ports allow daisy-chain topologies that reduce cabling and switch port requirements, while DIN rail mounting and a 12 to 36 VDC power input make installation straightforward in control panels. It belongs to the ioLogik E1200 Series of remote I/O.

Features

- Built-in 2-port Ethernet switch for daisy-chain topology
- Wide operating temperature (-T) version for harsh environments
- Configurable per channel as digital input or event counter
- Supports both wet contact (NPN/PNP) and dry contact sensors

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 16 x digital inputs (wet contact NPN/PNP, or dry contact)
- DI or event counter mode, 250 Hz counter frequency
- Isolation: 3k VDC or 2k Vrms
- 8 points per COM
- 2 x RJ45 10/100BaseT(X) Ethernet ports (switch, single MAC address)
- Power input: 12 to 36 VDC (24 VDC nominal), 110 mA @ 24 VDC
- Operating temperature: -40 to 75°C
- DIN rail mounting
- MTBF: 671,345 hrs (Telcordia SR332)

FAQs

Q: What is the operating temperature range of the ioLogik E1210-T?
A: The -T variant operates from -40 to 75°C, suitable for harsh industrial environments.

Q: How many digital inputs does the ioLogik E1210-T provide?
A: It provides 16 digital input channels, arranged with 8 points per COM.

Q: Which sensor types are supported?
A: The inputs support wet contact (NPN/PNP) and dry contact sensors.

Q: Can the inputs be used as counters?
A: Yes, each channel can be configured as a digital input or an event counter with a 250 Hz counter frequency.

Q: Can I daisy-chain multiple units?
A: Yes, the two built-in RJ45 Ethernet ports act as a switch, allowing daisy-chain topologies that share a single MAC address.

Q: What power supply does it need?
A: It accepts 12 to 36 VDC, with a 24 VDC nominal input drawing 110 mA.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
