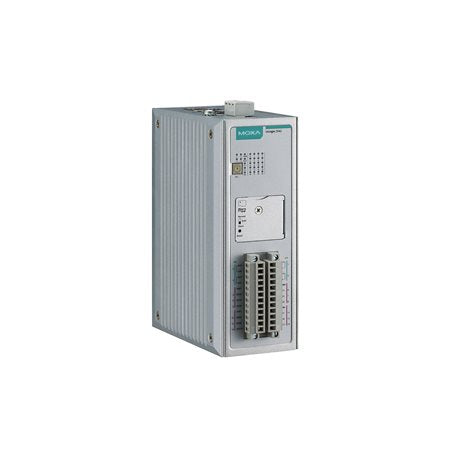

Moxa ioLogik-2542-T | ioLogik 2542-T Remote I/O, Click&Go Plus, 4 AIs, 12 DIOs, -40 to 75C

Authorised Moxa Partner

SKU:ioLogik 2542-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa ioLogik 2542-T is a smart Ethernet remote I/O controller with Click&Go Plus front-end logic, 4 analog inputs and 12 software-configurable DIO channels. The -T model is built for the wide -40 to 75°C temperature range, making it well suited to outdoor cabinets, factory floors and other harsh industrial deployments where standard I/O units would fail.

Click&Go Plus lets engineers build control logic without programming, with up to 48 rules for local decision-making, alarms and event handling. A 10/100BaseT(X) Ethernet port, a 3-in-1 RS-232/422/485 serial port and a microSD slot for data storage give flexible connectivity, while SNMP v1/v2c/v3 support and the MXIO library for Windows or Linux simplify integration with SCADA and monitoring systems.

Features

- Programming-free Click&Go Plus logic with up to 48 rules and 8 conditions/actions
- Wide operating temperature range of -40 to 75°C for harsh environments
- 3-in-1 serial port supports RS-232, RS-422 or RS-485
- Supports SNMP v1/v2c/v3 for network management
- MXIO library for Windows or Linux for custom application integration
- Active communication with MX-AOPC UA Server
- Over-temperature shutdown and overcurrent protection on digital outputs

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 4 x analog inputs (±10 V, 0-10 V, 0-20 mA, 4-20 mA differential)
- 12 x software-configurable DIO channels (DI or DO)
- Click&Go Plus control logic, up to 48 rules
- 1 x 10/100BaseT(X) RJ45 Ethernet port
- 3-in-1 serial port: RS-232/422/485
- microSD slot, up to 32 GB (SD 2.0 compatible)
- Isolation: 3k VDC or 2k Vrms
- Digital input: dry contact or wet contact (NPN or PNP), DI or event counter mode, 2.5 kHz counter frequency
- Digital output: sink type, 500 mA per channel, pulse output up to 5 kHz
- Analog input sampling rate: 400 samples/sec all channels, 100 samples/sec per channel
- Power input: 12 to 48 VDC
- Operating temperature: -40 to 75°C
- Ingress protection: IP30
- Mounting: DIN rail

FAQs

Q: What does the -T suffix mean on the ioLogik 2542-T?
A: The -T denotes the wide temperature model, which operates from -40 to 75°C, compared with a standard-temperature unit.

Q: How many I/O channels does the ioLogik 2542-T provide?
A: It provides 4 analog inputs and 12 DIO channels that can be configured by software as digital inputs or digital outputs.

Q: Do I need programming skills to configure the logic?
A: No. Click&Go Plus lets you build up to 48 control rules without programming, using conditions and actions.

Q: What communication interfaces are available?
A: It has one 10/100BaseT(X) RJ45 Ethernet port and a 3-in-1 serial port that can be set to RS-232, RS-422 or RS-485.

Q: What analog input ranges are supported?
A: The analog inputs support ±10 V, 0-10 V, 0-20 mA and 4-20 mA differential ranges.

Q: What power supply does the ioLogik 2542-T need?
A: It accepts a 12 to 48 VDC power input and mounts on a DIN rail.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
