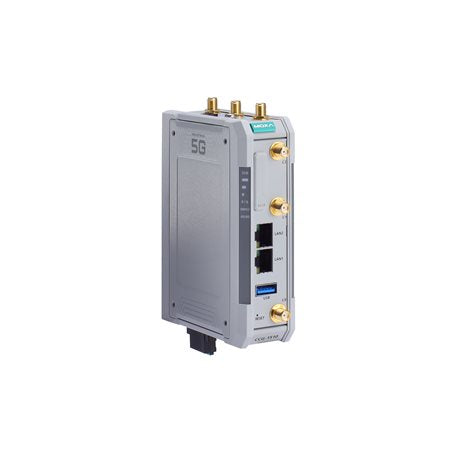

Moxa CCG-1510-T | CCG-1500 Industrial 5G Cellular Gateway, Dual SIM, Multi-Band

Authorised Moxa Partner

SKU:CCG-1510-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa CCG-1510-T is an industrial 5G cellular gateway built for private 5G networks and remote site connectivity. This multi-band global model covers 5G bands n1, n3, n28, n41, n48, n77 and n78, with LTE fallback, so a single SKU suits deployments across a wide range of regions and carriers. Dual SIM support with failover and Keep Alive connection recovery helps maintain uptime for critical industrial applications.

Housed in a rugged IP30 enclosure rated for operation from -40 to 70°C, the CCG-1510-T handles harsh industrial environments. Two Gigabit RJ45 ports connect local equipment, and its low power consumption makes it well suited to power-constrained sites. Configurable 5G NSA and SA bands, visible base station data and VxLAN tunnelling support give network teams the control they need.

Features

- High-throughput data transmission for private 5G networks
- Dual SIM failover and automatic connection recovery (Keep Alive)
- Low power consumption suited to power-constrained remote sites
- Configurable 5G NSA/SA bands with visible base station data
- VxLAN tunnelling support
- Rugged IP30 housing for -40 to 70°C operation

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 5G bands: n1 / n3 / n28 / n41 / n48 / n77 / n78
- 4G fallback: LTE Bands 1/3/7/8/28/38
- Up to approx. 920 Mbps downlink / 440 Mbps uplink (series figure)
- 2 x 10/100/1000BaseT(X) RJ45 ports
- Dual SIM
- IP30 protection
- Operating temperature: -40 to 70°C
- Average power consumption: approx. 8 W (series figure)

FAQs

Q: Which 5G bands does the Moxa CCG-1510-T support?
A: The CCG-1510-T supports 5G bands n1, n3, n28, n41, n48, n77 and n78, making it the multi-band global model in the CCG-1500 Series.

Q: How does the CCG-1510-T differ from the CCG-1510-TW-T and CCG-1510-US-T?
A: The CCG-1510-T is the multi-band global model. The CCG-1510-TW-T is the variant for Taiwan and the CCG-1510-US-T is the variant for US n48 deployments.

Q: Does the CCG-1510-T support dual SIM failover?
A: Yes. It has dual SIM support with failover and Keep Alive auto connection recovery to help maintain connectivity.

Q: What operating temperature range does it support?
A: The CCG-1510-T is rated for operation from -40 to 70°C and has IP30 protection, suiting it to industrial cabinets and harsh environments.

Q: What network ports does the CCG-1510-T provide?
A: It provides 2 x 10/100/1000BaseT(X) RJ45 ports for connecting local industrial equipment.

Q: Does it support both 5G NSA and SA modes?
A: Yes. The CCG-1510-T supports configurable 5G NSA and SA operation, with 4G LTE fallback.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
