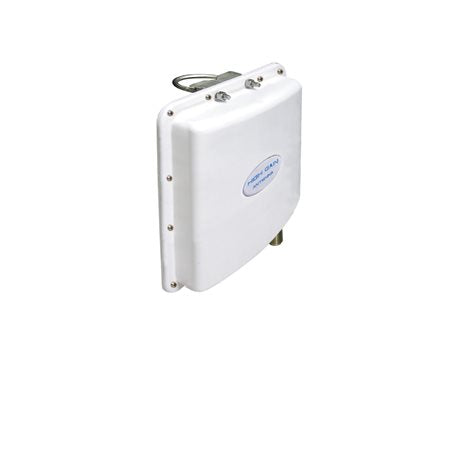

Moxa ANT-WSB-PNF-12-02 | 12 dBi 2.4 GHz Directional Panel WLAN Antenna, N-Type Female

Authorised Moxa Partner

SKU:ANT-WSB-PNF-12-02

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The ANT-WSB-PNF-12-02 is a 12 dBi, 2.4 GHz single-band directional panel WLAN antenna with a waterproof N-type female connector. Its high-gain, narrow-beam pattern (30° horizontal and vertical) focuses signal in one direction, which suits point-to-point links, long-range wireless backhaul and outdoor coverage in industrial sites.

The IP65-rated housing and an operating range of -40 to 85°C make this antenna suitable for harsh outdoor and industrial environments. Pole-mounting support simplifies installation, and the 50 ohm N-type connection integrates with Moxa and other 2.4 GHz wireless access points and clients that use N-type antenna ports.

Features

- High-gain 12 dBi antenna to enhance wireless performance
- Waterproof N-type female connector
- Pole-mounting support for flexible installation
- IP65-rated housing protects against dust and water
- 40 to 85°C operating temperature range for harsh environments

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Frequency: 2.4 to 2.4835 GHz
- Antenna type: Directional, Panel
- Typical antenna gain: 12 dBi
- Connector: N-type (female)
- Impedance: 50 ohms
- HPBW: 30° horizontal / 30° vertical
- V.S.W.R.: 1:2.0 max.
- Power handling: 10 W (max.)
- Polarization: Vertical
- Operating temperature: -40 to 85°C (-40 to 185°F)
- Storage temperature (package included): -40 to 85°C (-40 to 185°F)
- IP65-rated housing

FAQs

Q: What frequency band does the ANT-WSB-PNF-12-02 support?
A: It is a single-band antenna covering 2.4 to 2.4835 GHz, so it suits 2.4 GHz WLAN equipment only.

Q: What connector does this antenna use?
A: It uses a waterproof N-type female connector with 50 ohm impedance. Check that your access point or cable provides a matching N-type male connection.

Q: Is this an omnidirectional or directional antenna?
A: It is a directional panel antenna with a 30° horizontal and 30° vertical half-power beamwidth and vertical polarisation, designed to focus signal in one direction.

Q: Is the antenna suitable for outdoor installation?
A: Yes. The housing is IP65-rated, the operating temperature range is -40 to 85°C, and the antenna supports pole mounting.

Q: What is the maximum power this antenna can handle?
A: The power handling is 10 W maximum, with a maximum V.S.W.R. of 1:2.0.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
