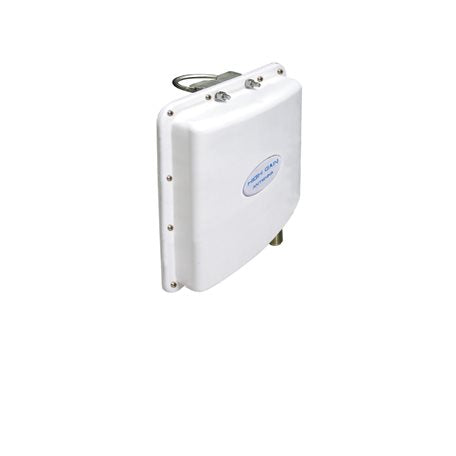

Moxa ANT-WDB-PNF-1011 | Dual-Band Directional WLAN Antenna, 10/11 dBi, N-Type

Authorised Moxa Partner

SKU:ANT-WDB-PNF-1011

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa ANT-WDB-PNF-1011 is a dual-band directional panel WLAN antenna delivering 10 dBi typical gain at 2.4 GHz and 11 dBi at 5 GHz. It terminates in a waterproof N-type female connector and is housed in an IP65-rated radome, making it well suited to outdoor and industrial wireless links where range and directional focus matter.

With a 40° horizontal and 30° vertical half-power beamwidth and vertical polarisation, the antenna concentrates signal toward the target area. A pole-mount design and an operating range of -40 to 85°C support deployment in harsh environments such as factories, yards, ports and transport sites.

Features

- High-gain dual-band design to enhance wireless performance
- Waterproof N-type female connector
- Pole-mounting support for outdoor installation
- IP65 housing protects against dust and water
- 40 to 85°C operating temperature range

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Frequency: 2.4 to 2.4835 GHz, 5.15 to 5.85 GHz
- Antenna type: Directional, panel
- Typical gain: 10 dBi at 2.4 GHz, 11 dBi at 5 GHz
- Connector: N-type (female)
- Impedance: 50 ohms
- HPBW: 40° horizontal, 30° vertical
- VSWR: 1:3.0 max.
- Power handling: 10 W (max.)
- Polarisation: Vertical
- IP rating: IP65
- Dimensions: 260 x 260 x 44 mm
- Weight: 767 g
- Radome: White, PC and ABS
- Installation: Pole mount
- Operating temperature: -40 to 85°C
- Storage temperature: -40 to 85°C

FAQs

Q: Which frequency bands does the ANT-WDB-PNF-1011 support?
A: It covers both the 2.4 GHz band (2.4 to 2.4835 GHz) and the 5 GHz band (5.15 to 5.85 GHz), so it can be used with dual-band WLAN equipment.

Q: What gain does this antenna provide?
A: Typical gain is 10 dBi at 2.4 GHz and 11 dBi at 5 GHz.

Q: What connector does it use?
A: It has a waterproof N-type female connector with 50 ohm impedance. Your access point or cable must provide a compatible N-type male connection.

Q: Is this antenna suitable for outdoor use?
A: Yes. The housing is IP65 rated and the operating temperature range is -40 to 85°C, suiting outdoor and industrial installations.

Q: How is the antenna mounted?
A: It is designed for pole mounting.

Q: Is it omnidirectional or directional?
A: It is a directional panel antenna with a 40° horizontal and 30° vertical half-power beamwidth and vertical polarisation, so it should be aimed toward the coverage area or remote link.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
