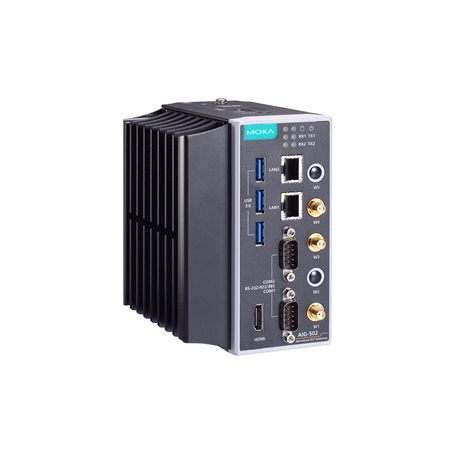

Moxa AIG-502-T-AZU-LX | AIG-502 Industrial IIoT Gateway, Azure IoT Edge, Core i7

Authorised Moxa Partner

SKU:AIG-502-T-AZU-LX

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa AIG-502-T-AZU-LX is a programmable industrial IIoT gateway built on an Intel Core i7-7600U processor with 32 GB DDR4 memory and pre-installed Azure IoT Edge. Designed for edge computing and data acquisition in demanding sites, it operates across a -40 to 70°C range and meets IEC 62443-4-2 Security Level 2 requirements. This Azure IoT Edge variant has no LTE/cellular module, so it has no cellular, GPS or Wi-Fi antenna connectors.

The AIG-502 Series runs Moxa Industrial Linux (Debian 11) and combines dual Gigabit Ethernet, two software-selectable RS-232/422/485 serial ports and three USB 3.0 hosts for connecting field devices and networks. An mPCIe slot allows an optional Wi-Fi module, while TPM v2.0, Secure Boot and a robust OTA function support secure, reliable deployments.

Features

- Azure IoT Edge for cloud-connected edge computing
- Modbus RTU/ASCII/TCP Client support
- Secure Boot to prevent malicious software-injection attacks
- Compliance with IEC 62443-4-2 Security Level 2 requirements
- Built-in network traffic monitoring and diagnostic tool
- Robust OTA function to prevent system failure during software upgrades
- Web console configuration over HTTP/HTTPS
- SSH, HTTPS/SSL, TLS and firewall security
- Wide -40 to 70°C operating temperature range

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Intel Core i7-7600U (4M cache, up to 3.90 GHz)
- Memory: 32 GB DDR4 SODIMM
- Storage: Pre-installed 32 GB mSATA
- Graphics: Intel HD Graphics 620
- OS: Moxa Industrial Linux (Debian 11, kernel 5.10.x)
- Ethernet: 2 x 10/100/1000 Mbps (RJ45)
- Serial: 2 x RS-232/422/485, software-selectable (DB9 male)
- USB: 3 x USB 3.0 hosts (Type-A)
- Video: 1 x HDMI output
- Expansion: 1 x mPCIe slot for optional Wi-Fi module
- Security: TPM v2.0
- Software: Azure IoT Edge v1.4.33
- Operating temperature: -40 to 70°C
- No cellular, GPS or Wi-Fi antenna connectors on this model

FAQs

Q: Does the AIG-502-T-AZU-LX include a cellular module?
A: No. This is the non-LTE variant, so it has no cellular, GPS or Wi-Fi antenna connectors. It connects over its two Gigabit Ethernet ports.

Q: Which processor and memory does this gateway use?
A: It uses an Intel Core i7-7600U processor with 32 GB DDR4 SODIMM memory and a pre-installed 32 GB mSATA drive.

Q: Which cloud software is pre-installed?
A: Azure IoT Edge v1.4.33 is included, along with Moxa Industrial Linux based on Debian 11.

Q: What serial interfaces are available?
A: Two DB9 male serial ports, each software-selectable between RS-232, RS-422 and RS-485.

Q: Can I add Wi-Fi to this model?
A: Yes. The mPCIe slot accepts an optional Wi-Fi module. Antenna connectors are not provided on this variant.

Q: What operating temperature range does it support?
A: The AIG-502-T-AZU-LX operates from -40 to 70°C, suiting harsh industrial environments.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
