Moxa AIG-502-T-AP-AZU-LX | AIG-502 Core i7 IIoT Gateway, Azure IoT Edge, LTE Cat. 4 APAC

Authorised Moxa Partner

SKU:AIG-502-T-AP-AZU-LX

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

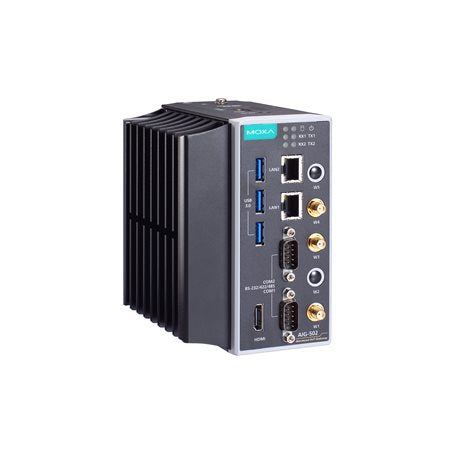

The Moxa AIG-502-T-AP-AZU-LX is a programmable IIoT gateway built on an Intel Core i7-7600U processor with 32 GB DDR4 memory, designed for edge computing in industrial environments from -40 to 70°C. This variant ships with Azure IoT Edge support and a pre-installed LTE Cat. 4 module for the Asia-Pacific region, so it can connect field equipment to cloud platforms over cellular without extra hardware.

The gateway runs Moxa Industrial Linux (Debian 11) and combines dual Gigabit Ethernet, two software-selectable RS-232/422/485 serial ports, three USB 3.0 hosts and HDMI output. Dual SIM slots, GPS and Wi-Fi antenna connectors, TPM v2.0 and Secure Boot make it suitable for secure, remote data acquisition, protocol conversion and on-site analytics.

Features

- Supports Azure IoT Edge (v1.4.x)
- Supports Modbus RTU/ASCII/TCP Client
- Secure Boot to prevent malicious software injection
- Built-in network traffic monitoring and diagnostic tool
- Robust OTA function for resumable, fail-safe software updates
- Compliance with IEC 62443-4-2 Security Level 2 requirements
- ATEX and IECEx Zone 2 compliance
- Pre-installed LTE Cat. 4 module for the APAC region with dual Nano SIM slots

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Intel Core i7-7600U (7th Gen, Kaby Lake U), up to 3.90 GHz, 4M cache
- Memory: 32 GB DDR4 SODIMM
- Storage: Pre-installed 32 GB mSATA; 2.5" HDD/SSD slot
- Pre-installed OS: Moxa Industrial Linux (Debian 11, kernel 5.10.x)
- Graphics: Intel HD Graphics 620
- Ethernet: 2 x 10/100/1000 Mbps (RJ45)
- Serial: 2 x RS-232/422/485 (software-selectable, DB9 male)
- USB: 3 x USB 3.0 Type-A hosts
- Video: 1 x HDMI
- Cellular: LTE Cat. 4, APAC bands (B1/B3/B5/B8/B28; UMTS/HSPA 850/900/2100 MHz)
- SIM: 2 x Nano SIM
- Antenna connectors: 2 x SMA cellular, 2 x RP-SMA Wi-Fi, 1 x SMA GPS
- Expansion: 1 x mPCIe slot (optional Wi-Fi module)
- Security: TPM v2.0, Secure Boot
- Power input: 12 to 48 VDC, dual redundant inputs
- Operating temperature: -40 to 70°C

FAQs

Q: Which region does the LTE module in the AIG-502-T-AP-AZU-LX support?
A: It includes a pre-installed LTE Cat. 4 module for the Asia-Pacific region, covering bands B1, B3, B5, B8 and B28, with UMTS/HSPA fallback on 850, 900 and 2100 MHz.

Q: Does this model support Azure IoT Edge?
A: Yes. This variant supports Azure IoT Edge (v1.4.x) and runs Moxa Industrial Linux based on Debian 11.

Q: What operating temperature range does the gateway support?
A: It operates from -40 to 70°C, making it suitable for harsh industrial and outdoor cabinet installations.

Q: What power input does the AIG-502 require?
A: It accepts 12 to 48 VDC and provides dual redundant power inputs.

Q: What interfaces are available for connecting field devices?
A: It provides two Gigabit Ethernet ports, two software-selectable RS-232/422/485 serial ports, three USB 3.0 Type-A ports and an HDMI output.

Q: Can Wi-Fi be added to this gateway?
A: Yes. The gateway has one mPCIe slot for an optional Wi-Fi module and includes two RP-SMA antenna connectors for Wi-Fi.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
