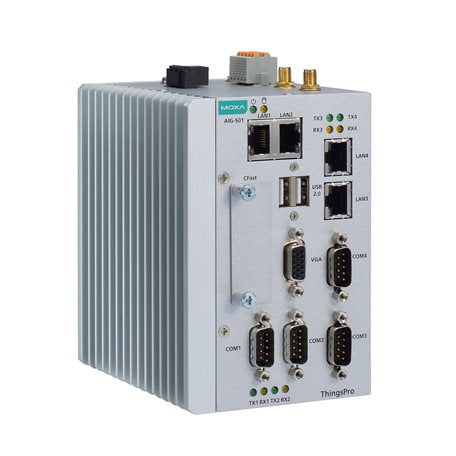

Moxa AIG-501-T-US-AZU-LX | AIG-501 Advanced IIoT Gateway, USA LTE, Azure IoT Edge, -40 to 70°C

Authorised Moxa Partner

SKU:AIG-501-T-US-AZU-LX

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The AIG-501 Advanced IIoT Gateway with USA LTE band connectivity is built for distributed and unmanned sites in harsh environments. Powered by an Intel Atom quad-core 1.91 GHz processor, it comes preloaded with ThingsPro Edge and Azure IoT Edge software for sensor-to-cloud connectivity, and operates across a wide -40 to 70°C temperature range.

With 4 x Gigabit Ethernet ports, 4 x software-selectable RS-232/422/485 serial ports, 4 digital inputs and 4 digital outputs, it connects field devices to cloud platforms such as Azure and AWS using protocols including Modbus, MQTT, Sparkplug B and OPC UA. It supports up to 4096 tags, and built-in data buffering with store-and-forward helps maintain data integrity during network interruptions.

Features

- Generic MQTT client support
- MQTT connection with built-in device SDKs for Azure and AWS cloud
- Modbus RTU/ASCII/TCP master/client and Modbus TCP server
- Azure IoT Edge support
- Easy device provisioning with the ThingsPro Proxy utility
- Data buffering using store-and-forward and datalogger
- Robust OTA function to prevent failure during software upgrades
- Secure Boot to prevent malicious software injection
- 40 to 70°C operating temperature range

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Intel Atom E3845 quad-core, 1.91 GHz (2M cache)
- DRAM: 4 GB DDR3L
- Storage: 32 GB pre-installed eMMC
- OS: Linux Debian 9, Kernel 4.9
- Graphics: Intel HD Graphics, 1 x VGA port
- Ethernet: 4 x 10/100/1000 Mbps RJ45 ports
- Serial: 4 x RS-232/422/485 (software-selectable, DB9 male)
- Digital I/O: 4 x DI, 4 x DO
- USB: 2 x USB 2.0 type-A hosts
- Cellular: LTE, USA band
- Supports up to 4096 tags
- Operating temperature: -40 to 70°C
- Preloaded software: ThingsPro Edge and Azure IoT Edge
- Protocols: Modbus RTU/ASCII/TCP master/client, Modbus TCP server, generic MQTT, Azure IoT Device, AWS IoT Core, Sparkplug B, OPC UA Server, FTP/SFTP

FAQs

Q: Which cellular band does this AIG-501 model support?
A: This model has an LTE module for USA bands, so it is intended for deployments using US carrier networks.

Q: What software comes preloaded?
A: ThingsPro Edge and Azure IoT Edge are preloaded, enabling sensor-to-cloud connectivity and device provisioning.

Q: What operating temperature range does it support?
A: It operates from -40 to 70°C, suitable for harsh and unmanned installations.

Q: Which industrial protocols are supported?
A: It supports Modbus RTU/ASCII/TCP master/client, Modbus TCP server, generic MQTT, Azure IoT Device, AWS IoT Core, Sparkplug B, OPC UA Server and FTP/SFTP.

Q: What I/O does the gateway provide?
A: It provides 4 x 10/100/1000 Mbps RJ45 Ethernet ports, 4 x RS-232/422/485 serial ports, 4 digital inputs, 4 digital outputs, 2 x USB 2.0 hosts and 1 x VGA port.

Q: How does it protect data during network outages?
A: Store-and-forward and datalogger functions buffer data locally and forward it once connectivity is restored.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
