Moxa AIG-501-T-AZU-LX | AIG-501 IIoT Gateway, Azure IoT Edge, No LTE, -40 to 70C

Authorised Moxa Partner

SKU:AIG-501-T-AZU-LX

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

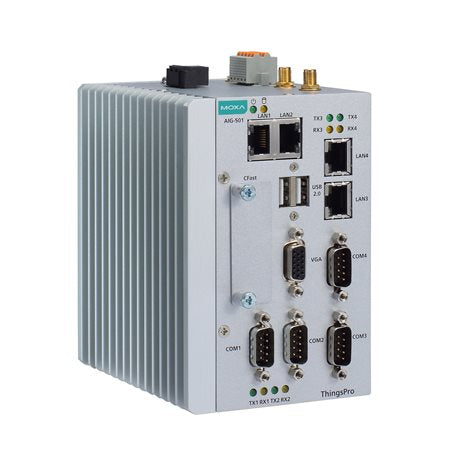

The Moxa AIG-501-T-AZU-LX is a fanless advanced IIoT gateway built for distributed and unmanned sites in harsh environments. This base model has no cellular LTE module and comes preloaded with ThingsPro Edge and Azure IoT Edge, giving a direct sensor-to-cloud path for Modbus data. Powered by an Intel Atom E3845 quad-core 1.91 GHz processor with 4 GB DDR3L and 32 GB storage, it operates across a -40 to 70°C temperature range.

It provides 4 Gigabit Ethernet ports, 4 software-configurable RS-232/422/485 serial ports, 4 digital inputs and 4 digital outputs, plus a VGA port for local display. Support for generic MQTT, Azure and AWS device SDKs, store-and-forward data buffering and Secure Boot makes it well suited to secure edge data collection and protocol conversion in industrial automation, energy and remote monitoring deployments.

Features

- Preloaded ThingsPro Edge and Azure IoT Edge software
- Generic MQTT client support
- MQTT connection with built-in device SDKs for Azure and AWS cloud
- Modbus RTU/ASCII/TCP master/client and Modbus TCP server
- Easy device provisioning with the ThingsPro Proxy utility
- Data buffering using store-and-forward and datalogger
- Robust OTA function to prevent system failure during software upgrades
- Secure Boot to prevent malicious software-injection attacks
- Fanless design with -40 to 70°C operating temperature range

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Intel Atom E3845 quad-core, 1.91 GHz (2M cache)
- Memory: 4 GB DDR3L
- Storage: Pre-installed 32 GB CFast eMMC
- OS: Linux Debian 9, Kernel 4.9
- Graphics: Intel HD Graphics, 1 x VGA port
- I/O: 4 x DI, 4 x DO
- LAN: 4 x Gigabit Ethernet ports
- Serial: 4 ports, software-configurable RS-232/422/485
- Tags supported: 4096
- Wi-Fi antenna connectors: 2 x RP-SMA
- Power connector: Screw-fastened Euroblock terminal
- Watchdog: External WDT automatic reboot trigger
- Housing: Metal, IP20
- Dimensions: 132 x 122 x 87 mm
- Weight: 1,340 g
- Operating temperature: -40 to 70°C
- Mounting: DIN-rail or wall (optional kits, not included)
- MTBF: 453,637 hrs (Telcordia)

FAQs

Q: Does the AIG-501-T-AZU-LX include a cellular LTE module?
A: No. This is the base model without cellular LTE. Regional LTE band variants are available as separate AIG-501 SKUs.

Q: Which software is preloaded on this gateway?
A: It comes with ThingsPro Edge and Azure IoT Edge software, running on Linux Debian 9 with Kernel 4.9.

Q: What operating temperature range does it support?
A: The gateway supports an operating temperature range of -40 to 70°C, suitable for harsh and unmanned installations.

Q: What interfaces and I/O are available?
A: It has 4 Gigabit Ethernet ports, 4 software-configurable RS-232/422/485 serial ports, 4 digital inputs, 4 digital outputs and 1 VGA port.

Q: Are DIN-rail or wall mounting kits included?
A: No. DIN-rail and wall mounting are supported using optional kits that are sold separately.

Q: Can it connect to AWS as well as Azure?
A: Yes. It supports MQTT connections with built-in device SDKs for both Azure and AWS cloud, alongside a generic MQTT client.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
