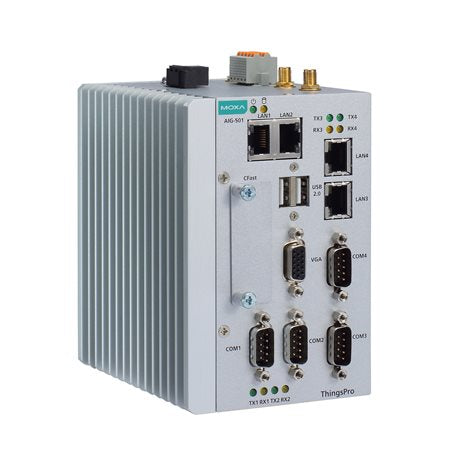

Moxa AIG-501-T-AP-AZU-LX | AIG-501 Advanced IIoT Gateway, Atom Quad-Core, LTE AP, Azure

Authorised Moxa Partner

SKU:AIG-501-T-AP-AZU-LX

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa AIG-501-T-AP-AZU-LX is a programmable DIN-rail advanced IIoT gateway built on an Intel Atom E3845 quad-core 1.91 GHz processor, designed for distributed and unmanned sites in harsh environments. This variant includes an Asia Pacific LTE band, with ThingsPro Edge and Azure IoT Edge software, and operates across a -40 to 70°C temperature range.

With 4 GB DDR3L memory, 32 GB eMMC storage, four Gigabit Ethernet ports, four software-selectable RS-232/422/485 serial ports, 4 digital inputs and 4 digital outputs, the gateway connects serial, discrete and Ethernet field devices to cloud platforms. It supports MQTT, Modbus, OPC UA Server and Sparkplug B, with up to 4096 tags, store-and-forward data buffering and Secure Boot for protected edge deployments.

Features

- Supports generic MQTT client and MQTT connection with built-in Azure/AWS device SDKs
- Supports Azure IoT Edge
- Modbus RTU/ASCII/TCP master/client and Modbus TCP server
- Easy device provisioning with the ThingsPro Proxy utility
- Data buffering via store-and-forward and datalogger
- Robust OTA function to prevent system failure during software upgrades
- Secure Boot to prevent malicious software-injection attacks
- Protocols include Sparkplug B, OPC UA Server, FTP/SFTP; NTP and GPS time management

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Intel Atom E3845 quad-core, 1.91 GHz (2M cache)
- DRAM: 4 GB DDR3L
- Storage: 32 GB pre-installed eMMC
- OS: Linux Debian 9, Kernel 4.9
- Graphics: Intel HD Graphics, 1 x VGA port
- 4 x 10/100/1000 Mbps Ethernet ports (RJ45)
- 4 x RS-232/422/485 serial ports (software-selectable, DB9 male)
- 4 x Digital Inputs, 4 x Digital Outputs
- 2 x USB 2.0 host ports (type-A)
- Cellular: Asia Pacific LTE band
- Supports up to 4096 tags
- Operating temperature: -40 to 70°C
- Magnetic isolation protection: 1.5 kV (built-in) on Ethernet ports

FAQs

Q: Which cellular band does the AIG-501-T-AP-AZU-LX support?
A: This model includes an Asia Pacific LTE band, making it suited to deployments in the Asia Pacific region.

Q: Does this gateway support Azure IoT Edge?
A: Yes. This variant ships with ThingsPro Edge and Azure IoT Edge software, and also supports MQTT connections using built-in Azure and AWS device SDKs.

Q: What serial and I/O interfaces are available?
A: It provides 4 software-selectable RS-232/422/485 serial ports (DB9 male), 4 digital inputs, 4 digital outputs, 4 Gigabit Ethernet ports and 2 USB 2.0 host ports.

Q: What operating temperature range does it support?
A: The gateway operates from -40 to 70°C, suitable for harsh and unmanned industrial sites.

Q: Which industrial protocols are supported?
A: It supports Modbus RTU/ASCII/TCP master/client, Modbus TCP server, MQTT, Sparkplug B, OPC UA Server and FTP/SFTP, with up to 4096 tags.

Q: What security features does the AIG-501 offer?
A: It includes Secure Boot to help prevent malicious software injection, and a robust OTA function that protects against system failure during software upgrades.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
