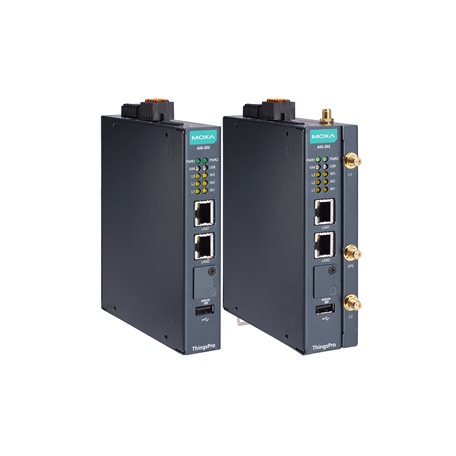

Moxa AIG-302-EU-AZU-LX | AIG-302 IIoT Gateway, Azure IoT Edge, LTE, EU, 2x Serial

Authorised Moxa Partner

SKU:AIG-302-EU-AZU-LX

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa AIG-302-EU-AZU-LX is a programmable IIoT gateway with Azure IoT Edge support and an integrated LTE Cat. 4 module for the EU region. Built on an Arm Cortex-A7 dual-core 1GHz processor, it connects serial and Modbus RTU/ASCII/TCP devices to MQTT and Azure cloud platforms, making it well suited to remote monitoring and edge data collection in industrial sites. This standard temperature EU variant combines Azure IoT Edge v1.4.20 with cellular connectivity for sites without wired backhaul.

The gateway provides 2 x Gigabit Ethernet, 2 x RS-232/422/485 serial ports, a CAN 2.0A/B port, 4 digital inputs and 4 digital outputs, with an mPCIe slot for expansion. Redundant 12 to 48 VDC power inputs, a metal IP30 housing and DIN-rail mounting suit control cabinet installation, while Secure Boot, OpenVPN client, SSH and HTTPS help protect the deployment.

Features

- Azure IoT Edge support for edge computing and cloud integration
- Generic MQTT client with built-in device SDKs for Azure cloud integration
- Modbus RTU/ASCII/TCP client and Modbus TCP server
- Integrated LTE Cat. 4 module for the EU region
- Built-in network traffic monitoring and diagnostic tool
- Robust OTA function to prevent failures during software upgrades
- Secure Boot to prevent malicious software injection
- Configuration via web console (HTTPS), RESTful APIs and AIG QuickON
- Security with OpenVPN client, SSH, HTTPS/SSL, TLS and firewall

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Processor: Arm Cortex-A7 dual-core 1GHz
- Ethernet: 2 x 10/100/1000 Mbps (RJ45)
- Serial: 2 x RS-232/422/485, software-selectable, DB9 male
- CAN: 1 x CAN 2.0A/B, DB9 male
- Digital I/O: 4 x digital inputs, 4 x digital outputs
- USB: 1 x USB 2.0 host (Type-A)
- Expansion: 1 x mPCIe slot
- Cellular: Nano SIM, LTE Cat. 4 (EU region bands), 2 x SMA cellular antenna connectors
- GPS: 1 x SMA antenna connector
- Wi-Fi: 2 x RP-SMA antenna connectors
- Cloud: Azure IoT Edge v1.4.20 supported
- Power input: redundant dual inputs, 12 to 48 VDC
- Power consumption: 12 W
- Housing: metal SECC, IP30
- Mounting: DIN-rail, wall mounting with optional kit
- Reliability: external watchdog timer

FAQs

Q: Which cloud platforms does the AIG-302-EU-AZU-LX support?
A: It supports Azure IoT Edge v1.4.20 and includes a generic MQTT client with built-in device SDKs for Azure cloud integration.

Q: Does this gateway include cellular connectivity?
A: Yes. It includes an LTE Cat. 4 module with EU region bands, a Nano SIM slot and SMA connectors for the cellular antennas.

Q: Which industrial protocols does it handle?
A: It works as a Modbus RTU/ASCII/TCP client and a Modbus TCP server, and it can forward data to the cloud using MQTT.

Q: What serial and I/O interfaces are available?
A: It provides 2 x RS-232/422/485 serial ports, 1 x CAN 2.0A/B port, 4 digital inputs, 4 digital outputs, 2 Gigabit Ethernet ports and a USB 2.0 host port.

Q: How is the gateway powered and mounted?
A: It has redundant dual power inputs accepting 12 to 48 VDC, draws 12 W, and mounts on a DIN rail. Wall mounting is possible with an optional kit.

Q: What security features are built in?
A: It supports Secure Boot, an OpenVPN client, SSH, HTTPS/SSL, TLS and a firewall, plus a robust OTA function for safer software upgrades.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
