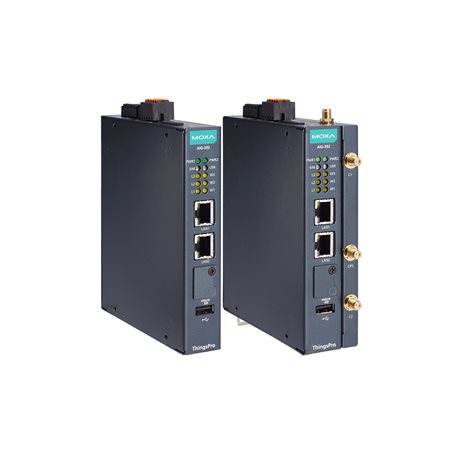

Moxa AIG-302-AZU-LX | AIG-302 IIoT Gateway, Modbus to MQTT/Azure, 2x RS-232/422/485

Authorised Moxa Partner

SKU:AIG-302-AZU-LX

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa AIG-302-AZU-LX is a programmable IIoT gateway that connects Modbus RTU, ASCII and TCP devices to Azure cloud and generic MQTT platforms. It is built on an Armv7 Cortex-A7 dual-core 1 GHz processor with 2 GB DDR3L memory and 32 GB eMMC storage, and ships with Azure IoT Edge software. This is the standard temperature model with no LTE module preinstalled, suited to wired Ethernet deployments.

The gateway provides 2 x Gigabit Ethernet ports, 2 x software-selectable RS-232/422/485 serial ports, 1 x CAN 2.0 A/B port, and 4 digital inputs and 4 digital outputs for local field connectivity. It runs Moxa Industrial Linux (Debian 11) for long-term support, includes TPM v2.0 for platform security, and handles up to 3000 tags.

Features

- Connects Modbus RTU, ASCII and TCP devices to Azure cloud and MQTT platforms
- Modbus TCP server mode support
- Generic MQTT client with built-in device SDKs tailored for Azure
- Azure IoT Edge software included
- Moxa Industrial Linux for long-term support
- TPM v2.0 for hardware-based platform security
- Dual Gigabit Ethernet, dual serial, CAN and digital I/O in one gateway

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Armv7 Cortex-A7 dual-core 1 GHz
- Memory: 2 GB DDR3L DRAM
- Storage: 32 GB eMMC
- Pre-installed OS: Moxa Industrial Linux (Debian 11, kernel 5.10.x)
- LAN: 2 x 10/100/1000 Mbps Ethernet (RJ45)
- Serial: 2 x RS-232/422/485, software-selectable (DB9 male)
- CAN: 1 x CAN 2.0 A/B (DB9 male)
- Digital I/O: 4 x digital inputs, 4 x digital outputs
- USB: 1 x USB 2.0 host (Type-A)
- Security: TPM v2.0
- Capacity: up to 3000 tags
- Storage temperature: -40 to 85°C
- Ambient relative humidity: 5 to 95% (non-condensing)
- Variant: standard temperature, no LTE module preinstalled

FAQs

Q: What protocols does the AIG-302-AZU-LX support?
A: It connects Modbus RTU, ASCII and TCP devices and publishes data to cloud platforms using a generic MQTT client with built-in device SDKs tailored for Azure. It also supports Modbus TCP server mode.

Q: Does this model include a cellular LTE module?
A: No. This is the standard temperature variant with no LTE module preinstalled, so it connects upstream over its Gigabit Ethernet ports.

Q: What operating system does it run?
A: It comes with Moxa Industrial Linux pre-installed, based on Debian 11 with kernel 5.10.x, designed for long-term support in industrial deployments.

Q: How many serial and Ethernet ports does it have?
A: It has 2 x RS-232/422/485 serial ports (software-selectable, DB9 male) and 2 x 10/100/1000 Mbps Ethernet ports (RJ45). It also has 1 x CAN 2.0 A/B port.

Q: How many tags can the gateway handle?
A: The AIG-302 platform supports up to 3000 tags.

Q: Does it include Azure IoT Edge?
A: Yes. The AZU variant comes with Azure IoT Edge software, making it ready for Azure cloud integration.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
