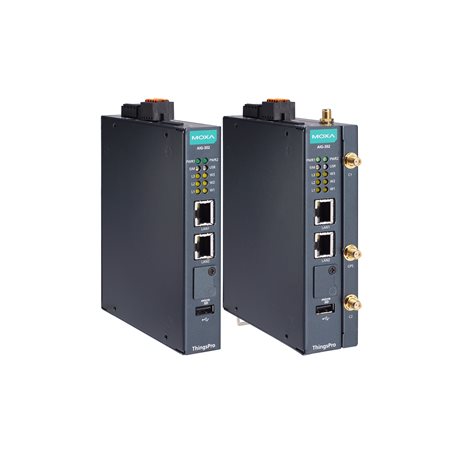

Moxa AIG-302-AP-AZU-LX | AIG-302 Azure IoT Edge Gateway, APAC LTE, Modbus, MQTT

Authorised Moxa Partner

SKU:AIG-302-AP-AZU-LX

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa AIG-302-AP-AZU-LX is a programmable industrial IoT gateway built for the Asia-Pacific region, with an APAC LTE module and Azure IoT Edge ready to run out of the box. It connects Modbus RTU/ASCII and Modbus TCP devices to Azure cloud services and generic MQTT platforms, making it a practical edge gateway for remote monitoring, data collection and protocol conversion in industrial sites.

An Arm Cortex-A7 dual-core 1 GHz processor runs Moxa Industrial Linux (Debian 11), with dual Gigabit Ethernet, two software-selectable RS-232/422/485 serial ports, CAN, digital I/O and an mPCIe slot for expansion. Redundant 12-48 VDC power inputs, a metal IP30 housing with DIN-rail mounting and TPM v2.0 with secure boot suit it to demanding standard-temperature industrial deployments.

Features

- Pre-loaded with Azure IoT Edge, Azure IoT Device and generic MQTT client
- Modbus RTU/ASCII client and Modbus TCP client/server
- Secure boot and OTA software upgrade
- Built-in network traffic monitoring and diagnostic tools
- AIG QuickON provisioning utility and Moxa DLM remote device management
- Azure DPS authentication: connection string, symmetric key, X.509, TPM

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Armv7 Cortex-A7 dual-core 1 GHz
- 2 GB DDR3L DRAM, 32 GB eMMC storage
- Pre-installed OS: Moxa Industrial Linux (Debian 11, kernel 5.10.x)
- 2 x 10/100/1000 Mbps Ethernet ports (RJ45)
- 2 x RS-232/422/485 serial ports (software-selectable, DB9 male)
- 1 x CAN 2.0 A/B (DB9 male), 4 x DI, 4 x DO
- 1 x USB 2.0 host (Type-A), 1 x mPCIe slot, 2 x Nano SIM
- Antenna connectors: 2 x RP-SMA Wi-Fi, 2 x SMA cellular, 1 x SMA GPS
- TPM v2.0, 3000 tags supported
- Azure IoT Edge v1.4.20 supported
- Power: redundant dual 12-48 VDC inputs, 12 W consumption
- Metal SECC housing, IP30, DIN-rail mounting (wall mount with optional kit)
- Variant: APAC LTE, standard temperature

FAQs

Q: Which cloud platforms does the AIG-302-AP-AZU-LX support?
A: It comes pre-loaded with Azure IoT Edge and the Azure IoT Device client, and also includes a generic MQTT client for other MQTT-based platforms. Azure IoT Edge v1.4.20 is supported.

Q: Which industrial protocols can it connect to?
A: It supports Modbus RTU/ASCII client and Modbus TCP client/server, so it can bridge serial and Ethernet Modbus devices to the cloud.

Q: Does this model include cellular connectivity?
A: Yes. This is the APAC LTE variant with two Nano SIM slots and SMA cellular antenna connectors. Cellular antennas are connected separately.

Q: How is the gateway powered?
A: It has redundant dual 12-48 VDC power inputs and consumes about 12 W.

Q: How does it mount, and what is its temperature rating?
A: It has a metal IP30 housing with DIN-rail mounting, and wall mounting is available with an optional kit. This is the standard-temperature (non-T) model, so choose the T variant if wide-temperature operation is required.

Q: Which operating system does it run?
A: It ships with Moxa Industrial Linux, based on Debian 11 with kernel 5.10.x, on an Arm Cortex-A7 dual-core 1 GHz processor.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
