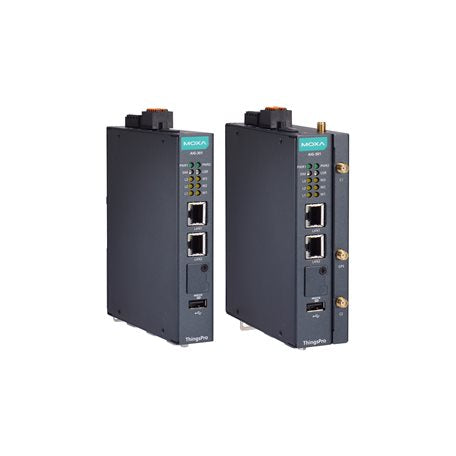

Moxa AIG-301-US-AZU-LX | AIG-301 IIoT Gateway, Azure IoT Edge, US LTE, 4DI/4DO, CAN

Authorised Moxa Partner

SKU:AIG-301-US-AZU-LX

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa AIG-301-US-AZU-LX is a programmable IIoT gateway with US LTE band support, built for distributed and unmanned industrial sites. Powered by an Arm Cortex-A7 dual-core 1 GHz processor, it collects data from Modbus RTU/TCP devices and comes with Azure IoT Edge preloaded for secure sensor-to-cloud connectivity. This standard temperature variant operates from -20 to 70°C.

With 2 x Gigabit Ethernet ports, 2 x software-selectable RS-232/422/485 serial ports, 1 x CAN port, 4 x digital inputs and 4 x digital outputs, the AIG-301 connects a wide range of field devices. ThingsPro Edge software supports device management and edge data handling, and the metal SECC housing with DIN-rail mounting suits control cabinets and harsh environments.

Features

- Modbus RTU/TCP master/client protocols for easy data collection
- Azure IoT Edge preloaded for secure sensor-to-cloud connectivity and device management
- Designed for harsh, distributed and unmanned industrial sites
- Built-in LTE cellular connectivity with US band support
- Gigabit Ethernet, serial, CAN, DI and DO interfaces in a single compact gateway
- External watchdog timer for reliable unattended operation

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Arm Cortex-A7 dual-core 1 GHz processor
- 2 x 10/100/1000 Mbps Ethernet ports (RJ45)
- 2 x RS-232/422/485 serial ports (software-selectable, DB9 male)
- 1 x CAN port, 4 x DI, 4 x DO
- LTE cellular, USA band support
- ThingsPro Edge and Azure IoT Edge software
- Input voltage: 12 to 48 VDC
- Input current: 0.7 A @ 12 VDC
- Power consumption: 8.4 W
- Power connector: 4-pin terminal block
- Operating temperature: -20 to 70°C (standard temp.)
- Storage temperature: -40 to 85°C
- Ambient humidity: 5 to 95% (non-condensing)
- Metal SECC housing, IP30
- Weight: 750 g
- DIN-rail mounting; wall mounting with optional kit
- External watchdog timer (WDT)

FAQs

Q: Which LTE bands does the AIG-301-US-AZU-LX support?
A: This variant supports US LTE bands. It is the US cellular version of the AIG-301 series.

Q: What software comes with this gateway?
A: It supports ThingsPro Edge and comes with Azure IoT Edge preloaded for sensor-to-cloud connectivity and device management.

Q: What is the operating temperature range?
A: This is the standard temperature model, operating from -20 to 70°C.

Q: Which interfaces does it provide for field devices?
A: It has 2 x Gigabit Ethernet ports, 2 x software-selectable RS-232/422/485 serial ports, 1 x CAN port, 4 digital inputs and 4 digital outputs.

Q: How is the AIG-301-US-AZU-LX powered and mounted?
A: It accepts 12 to 48 VDC through a 4-pin terminal block. It mounts on a DIN rail, and wall mounting is possible with an optional kit.

Q: Which industrial protocols does it support for data collection?
A: It supports Modbus RTU/TCP master/client protocols for collecting data from connected field devices.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
