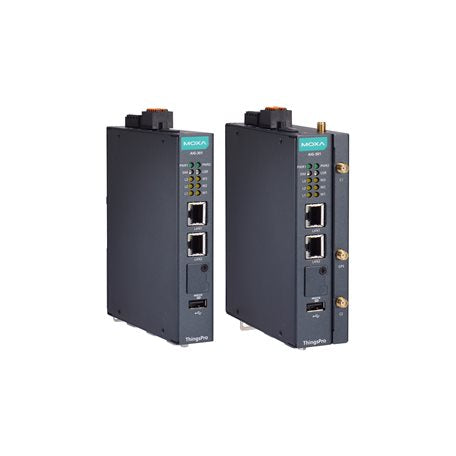

Moxa AIG-301-T-US-AZU-LX | AIG-301 Industrial IoT Gateway, US LTE, Azure IoT Edge, -40 to 70°C

Authorised Moxa Partner

SKU:AIG-301-T-US-AZU-LX

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa AIG-301-T-US-AZU-LX is a programmable industrial IoT gateway built around a 1 GHz Armv7 Cortex-A7 dual-core processor. This wide-temperature variant (-40 to 70°C) adds LTE with US band support and ships with ThingsPro Edge and Azure IoT Edge software, making it suited to remote edge data acquisition and cloud connectivity in harsh environments.

It combines 2 x Gigabit Ethernet, 2 x software-selectable RS-232/422/485 serial ports, 1 x CAN 2.0 A/B port and 4 DIs with 4 DOs, so it can bridge a mix of serial, fieldbus and I/O devices to the cloud. The metal IP30 housing supports DIN-rail mounting and redundant 12 to 48 VDC power inputs for dependable operation in industrial deployments.

Features

- Pre-installed ThingsPro Edge software for edge data acquisition and device management
- Azure IoT Edge support for cloud connectivity
- Moxa Industrial Linux with long-term support
- Wide-temperature design for harsh industrial environments
- Built-in 1.5 kV magnetic isolation protection on Ethernet ports
- Cellular and Wi-Fi signal strength indicators
- Redundant dual power inputs for improved uptime

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Armv7 Cortex-A7 dual-core 1 GHz
- Memory: 2 GB DDR3L DRAM
- Storage: 16 GB eMMC pre-installed
- OS: Moxa Industrial Linux (Debian 9, Kernel 4.4)
- Ethernet: 2 x 10/100/1000 Mbps (RJ45)
- Serial: 2 x RS-232/422/485, software-selectable (DB9 male)
- CAN: 1 x CAN 2.0 A/B port (DB9 male)
- I/O: 4 x digital inputs, 4 x digital outputs
- Cellular: LTE with US band support
- Power input: redundant dual 12 to 48 VDC (4-pin terminal block)
- Housing: metal SECC, IP30
- Mounting: DIN-rail, wall mounting with optional kit
- Operating temperature: -40 to 70°C
- Storage temperature: -40 to 85°C
- Humidity: 5 to 95% non-condensing
- Supports up to 2048 tags
- Watchdog: external WDT for automatic reboot

FAQs

Q: What software comes pre-installed on the AIG-301-T-US-AZU-LX?
A: It ships with ThingsPro Edge for data acquisition and device management, and supports Azure IoT Edge for cloud connectivity. It runs Moxa Industrial Linux (Debian 9, Kernel 4.4).

Q: Which cellular bands does this model support?
A: This variant is built for LTE with US band support. It is the US-region version of the AIG-301 range.

Q: What industrial interfaces does it provide?
A: 2 x Gigabit Ethernet, 2 x software-selectable RS-232/422/485 serial ports, 1 x CAN 2.0 A/B port, 4 digital inputs and 4 digital outputs.

Q: Can it operate in extreme temperatures?
A: Yes. This is the wide-temperature model, rated for -40 to 70°C operation and -40 to 85°C storage.

Q: How is the gateway powered and mounted?
A: It has redundant dual 12 to 48 VDC power inputs on a 4-pin terminal block. It mounts on a DIN rail, with wall mounting available using an optional kit.

Q: How does this SKU differ from other AIG-301 models?
A: This SKU combines US LTE band support, Azure IoT Edge software and the -40 to 70°C wide-temperature rating. Other AIG-301 variants differ in cellular region, software package or temperature range.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
