Moxa AIG-301-T-AZU-LX | AIG-301 Series IIoT Gateway, -40 to 85°C, Azure IoT Edge, 1 CAN

Authorised Moxa Partner

SKU:AIG-301-T-AZU-LX

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

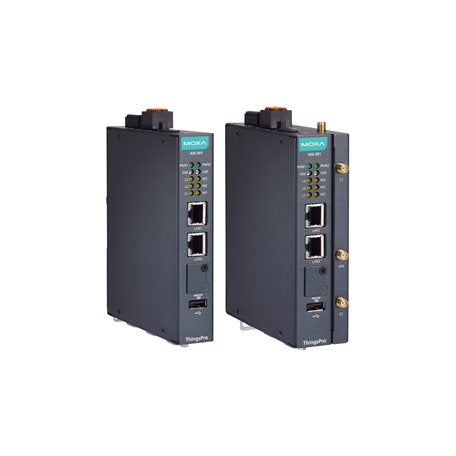

The AIG-301 Series advanced IIoT gateway is a programmable industrial edge gateway built on an Arm Cortex-A7 dual-core 1 GHz processor. This wide-temperature, non-cellular model operates from -40 to 85°C and ships with ThingsPro Edge and Azure IoT Edge software preloaded. It offers 1 CAN port, 4 digital inputs and 4 digital outputs, making it well suited to harsh, distributed and unmanned industrial sites.

With 2 Gigabit Ethernet ports and 2 software-selectable RS-232/422/485 serial ports, it collects data from Modbus RTU/ASCII and Modbus TCP devices and forwards it to Azure. The metal SECC housing is IP30 rated and DIN-rail mountable, with wall mounting available using an optional kit.

Features

- Preloaded Azure IoT Edge with Manual, Connection String DPS, Symmetric Encryption DPS, X.509 Certificate DPS and TPM authentication
- Azure Direct Methods: Reboot, Software Upgrade and Remote API Invocation
- Modbus RTU/ASCII client (master) and Modbus TCP client support for collecting data from Modbus devices
- ThingsPro Edge software for data acquisition and device management
- Designed for distributed and unmanned sites in harsh environments
- Wide -40 to 85°C operating temperature range

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Processor: Arm Cortex-A7 dual-core 1 GHz
- Ethernet: 2 x 10/100/1000 Mbps (RJ45)
- Serial: 2 x RS-232/422/485, software-selectable (DB9 male)
- CAN: 1 x CAN 2.0 A/B (DB9 male)
- Digital inputs: 4 x DI
- Digital outputs: 4 x DO
- Cellular: no LTE module
- Software: ThingsPro Edge and Azure IoT Edge v1.4.40 preloaded
- Operating temperature: -40 to 85°C
- Storage temperature: -40 to 85°C
- Ethernet magnetic isolation protection: 1.5 kV
- Housing: metal SECC, IP30
- Mounting: DIN-rail (wall mounting with optional kit)
- Dimensions: 141.5 x 120 x 27 mm
- Weight: 560 g
- Power input: 0.4 A @ 12 VDC, 4-pin terminal block
- Power consumption: 4.8 W

FAQs

Q: Does the AIG-301-T-AZU-LX include a cellular module?
A: No. This model has no LTE module and no mPCIe slots for cellular or Wi-Fi modules. Connectivity is via its 2 Gigabit Ethernet ports.

Q: What software is preloaded on this gateway?
A: It ships with ThingsPro Edge for data acquisition and device management, and Azure IoT Edge v1.4.40 for connecting to Microsoft Azure.

Q: What operating temperature range does it support?
A: The -T variant supports an operating temperature of -40 to 85°C, suitable for harsh industrial environments.

Q: What field interfaces does it provide?
A: It provides 2 RS-232/422/485 serial ports, 1 CAN 2.0 A/B port, 4 digital inputs and 4 digital outputs, plus 2 Gigabit Ethernet ports.

Q: Can it collect data from Modbus devices?
A: Yes. It supports Modbus RTU/ASCII client (master) and Modbus TCP client for collecting data from Modbus devices.

Q: How is the AIG-301-T-AZU-LX mounted?
A: It is DIN-rail mountable as standard. Wall mounting is possible using an optional mounting kit.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
