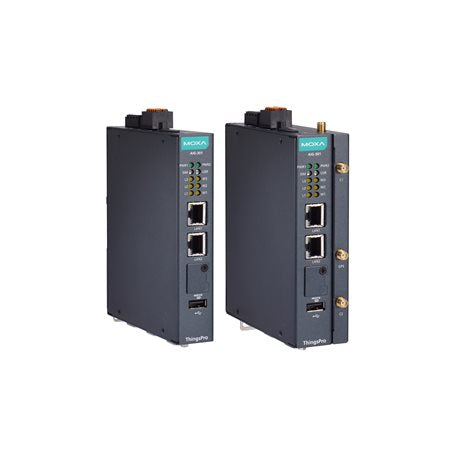

Moxa AIG-301-T-AP-AZU-LX | AIG-301 Industrial IIoT Gateway, LTE Asia Pacific, -40 to 70°C, Azure IoT Edge

Authorised Moxa Partner

SKU:AIG-301-T-AP-AZU-LX

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa AIG-301-T-AP-AZU-LX is a programmable industrial IIoT gateway built for distributed and unmanned sites in harsh environments. This Asia Pacific LTE band model has a wide -40 to 70°C operating temperature range and comes with ThingsPro Edge and Azure IoT Edge software for sensor-to-cloud data acquisition and device management.

Powered by a 1 GHz Armv7 Cortex-A7 dual-core processor with 2 GB DDR3L memory and 16 GB eMMC storage, it runs Moxa Industrial Linux and provides 2 Gigabit Ethernet ports, 1 CAN port, 4 digital inputs and 4 digital outputs. Redundant 12 to 48 VDC power inputs, Secure Boot and a robust OTA upgrade function suit it to remote industrial IoT deployments.

Features

- Generic MQTT client support
- MQTT connection with built-in Azure and AWS cloud device SDKs
- Modbus RTU/ASCII/TCP master/client and Modbus TCP server
- Azure IoT Edge support
- Data buffering using store-and-forward and datalogger
- Easy device provisioning with ThingsPro Proxy utility
- Robust OTA function to prevent failures during software upgrades
- Secure Boot to prevent malicious software injection
- 40 to 70°C operating temperature range

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Armv7 Cortex-A7 dual-core 1 GHz
- DRAM: 2 GB DDR3L
- Storage: 16 GB eMMC pre-installed
- OS: Moxa Industrial Linux (Debian 9, Kernel 4.4)
- Tags supported: 2048
- Ethernet: 2 x 10/100/1000 Mbps (RJ45)
- 1 x CAN port
- 4 x DI, 4 x DO
- Cellular: LTE, Asia Pacific band
- Power: redundant dual inputs, 12 to 48 VDC
- Operating temperature: -40 to 70°C
- Preloaded software: ThingsPro Edge and Azure IoT Edge

FAQs

Q: Which cellular band does the AIG-301-T-AP-AZU-LX support?
A: This model is the Asia Pacific LTE band version of the AIG-301 Series, intended for deployments in that region.

Q: What cloud platforms does this gateway connect to?
A: It comes with ThingsPro Edge and Azure IoT Edge, and supports MQTT connections with built-in Azure and AWS cloud device SDKs.

Q: What industrial protocols are supported?
A: It supports Modbus RTU/ASCII/TCP master/client and Modbus TCP server, along with a generic MQTT client.

Q: What operating temperature range does it support?
A: The -T model operates from -40 to 70°C, which suits unmanned and harsh outdoor or cabinet installations.

Q: What I/O interfaces are included?
A: It has 2 x 10/100/1000 Mbps Ethernet ports, 1 x CAN port, 4 digital inputs and 4 digital outputs.

Q: How is the gateway powered?
A: It has redundant dual power inputs accepting 12 to 48 VDC.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
