Moxa AIG-301-AZU-LX | AIG-301 IIoT Gateway, Azure IoT Edge, No Cellular, 1x CAN

Authorised Moxa Partner

SKU:AIG-301-AZU-LX

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

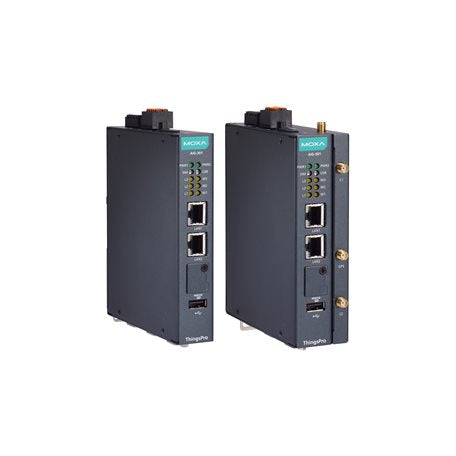

The Moxa AIG-301-AZU-LX is a programmable industrial IIoT gateway built on a dual-core Arm Cortex-A7 1 GHz processor, running ThingsPro Edge and Azure IoT Edge software. It is the base model without a cellular module, suited to Modbus data acquisition and secure connectivity to Azure from harsh, unmanned industrial sites, with an operating temperature range of -20 to 85°C.

The gateway provides 2 Gigabit Ethernet ports, 2 software-selectable RS-232/422/485 serial ports, 1 CAN 2.0 A/B port and 4 digital inputs with 4 digital outputs. Redundant 12 to 48 VDC power inputs, an external watchdog timer and a rugged IP30 metal housing with DIN-rail mounting support reliable long-term operation. It runs Moxa Industrial Linux with 2 GB DDR3L memory and 16 GB eMMC storage.

Features

- Programmable IIoT gateway with ThingsPro Edge and Azure IoT Edge software
- Modbus data acquisition and connectivity to Azure
- Redundant dual power inputs for continuous operation
- External watchdog timer (WDT) for automatic reboot
- Wide -20 to 85°C operating temperature range for harsh environments
- Combined Ethernet, serial, CAN and DI/DO interfaces for mixed field devices

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Armv7 Cortex-A7 dual-core 1 GHz
- DRAM: 2 GB DDR3L
- Storage: 16 GB eMMC pre-installed
- OS: Moxa Industrial Linux (Debian 9, Kernel 4.4)
- Ethernet: 2 x 10/100/1000 Mbps (RJ45)
- Serial: 2 x RS-232/422/485 software-selectable (DB9 male), 300 bps to 921.6 kbps
- CAN: 1 x CAN 2.0 A/B (DB9 male)
- Digital Input: 4 x DI
- Digital Output: 4 x DO
- Tags supported: 2048
- Power input: redundant dual inputs, 12 to 48 VDC, 4-pin terminal block
- Power consumption: 4.8 W (0.4 A @ 12 VDC)
- Operating temperature: -20 to 85°C
- Storage temperature: -40 to 85°C
- Humidity: 5 to 95% (non-condensing)
- Housing: metal SECC, IP30
- Mounting: DIN-rail, or wall mount with optional kit
- Weight: 560 g

FAQs

Q: Does the AIG-301-AZU-LX include a cellular module?
A: No. This is the base model without a cellular module, and it has no mPCIe slots for LTE or Wi-Fi modules.

Q: Which software is supported on this gateway?
A: It runs ThingsPro Edge and Azure IoT Edge software on Moxa Industrial Linux (Debian 9, Kernel 4.4).

Q: What interfaces does the AIG-301-AZU-LX provide?
A: It offers 2 x 10/100/1000 Mbps Ethernet ports, 2 x RS-232/422/485 serial ports, 1 x CAN 2.0 A/B port, 4 digital inputs and 4 digital outputs.

Q: What power input does it require?
A: It uses redundant dual 12 to 48 VDC inputs via a 4-pin terminal block, with typical consumption of 4.8 W.

Q: What operating temperature range is supported?
A: The gateway operates from -20 to 85°C, making it suitable for harsh and unmanned industrial installations.

Q: How is the gateway mounted?
A: It supports DIN-rail mounting as standard, and wall mounting with an optional mounting kit.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
