Moxa AIG-301-AP-AZU-LX | AIG-301 Industrial IIoT Gateway, Asia-Pacific LTE Cat. 4, Azure IoT Edge, -20

Authorised Moxa Partner

SKU:AIG-301-AP-AZU-LX

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

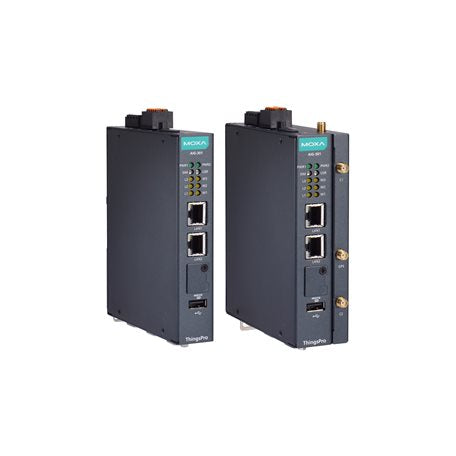

The Moxa AIG-301-AP-AZU-LX is an industrial IIoT gateway built on a dual-core 1 GHz Arm Cortex-A7 processor, designed to connect Modbus serial and CAN devices to the Azure cloud. This Asia-Pacific model includes a preinstalled LTE Cat. 4 module, Azure IoT Edge support and an extended operating range of -20 to 70°C, making it suited to remote and harsh-environment deployments.

With 2 x Gigabit Ethernet, 2 x software-selectable RS-232/422/485 serial ports, 1 x CAN 2.0 A/B port and 4 digital inputs and outputs, it consolidates field connectivity in one DIN-rail mounted unit. Redundant 12 to 48 VDC power inputs, TPM v2.0, Secure Boot and Moxa Industrial Linux support secure, reliable edge data collection with store-and-forward buffering.

Features

- Azure IoT Edge support
- Generic MQTT client support
- MQTT connection with built-in device SDKs for Azure and AWS cloud
- Modbus RTU/ASCII/TCP master/client and Modbus TCP server
- Data buffering with store-and-forward and datalogger
- Easy device provisioning with ThingsPro Proxy utility
- Robust OTA function to prevent system failure during software upgrades
- Secure Boot to prevent malicious software-injection attacks

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Armv7 Cortex-A7 dual-core 1 GHz
- 2 GB DDR3L DRAM, 16 GB eMMC storage
- 2 x 10/100/1000 Mbps Ethernet ports (RJ45)
- 2 x RS-232/422/485 serial ports (DB9 male, software-selectable)
- 1 x CAN 2.0 A/B port (DB9 male)
- 4 x Digital Inputs, 4 x Digital Outputs
- 1 x mPCIe slot with Asia-Pacific LTE Cat. 4 module preinstalled
- 2 x Nano SIM slots
- TPM v2.0
- Redundant dual power inputs, 12 to 48 VDC
- Power consumption 8.4 W, 0.7 A @ 12 VDC
- Moxa Industrial Linux (Debian 9, Kernel 4.4)
- Supports 2048 tags
- Metal SECC housing, IP30, DIN-rail mounting (wall mounting with optional kit)
- Operating temperature -20 to 70°C, storage -40 to 85°C
- Ambient relative humidity 5 to 95% (non-condensing)

FAQs

Q: Does the AIG-301-AP-AZU-LX include a cellular module?
A: Yes. It has an Asia-Pacific LTE Cat. 4 module preinstalled in the mPCIe slot, and two Nano SIM slots are provided.

Q: Which cloud platforms does it support?
A: It supports Azure IoT Edge and offers MQTT connectivity with built-in device SDKs for Azure and AWS cloud, as well as generic MQTT client support.

Q: What field protocols and interfaces can it connect to?
A: It provides Modbus RTU/ASCII/TCP master/client and Modbus TCP server functions, with 2 x RS-232/422/485 serial ports, 1 x CAN 2.0 A/B port, 4 digital inputs and 4 digital outputs.

Q: What is the operating temperature range?
A: This model operates from -20 to 70°C, with storage rated from -40 to 85°C.

Q: How is the gateway powered and mounted?
A: It has redundant dual power inputs accepting 12 to 48 VDC and is DIN-rail mounted in an IP30 metal housing. Wall mounting is possible with the optional kit.

Q: What security features does it have?
A: It includes TPM v2.0 and Secure Boot to help prevent malicious software injection, plus a robust OTA function to avoid system failure during software upgrades.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
