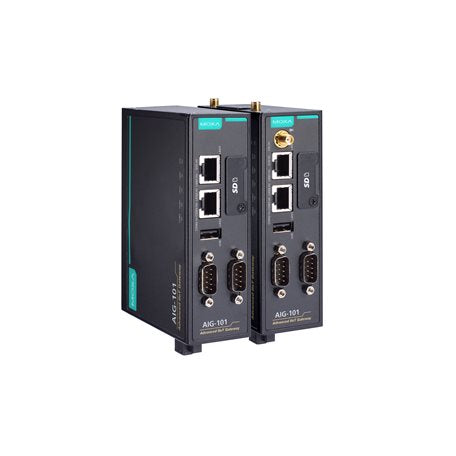

Moxa AIG-101-T-US | AIG-101 Modbus to Cloud IIoT Gateway, US LTE Cat. 1, -T

Authorised Moxa Partner

SKU:AIG-101-T-US

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The AIG-101-T-US is an entry-level IIoT gateway that connects Modbus RTU/ASCII/TCP devices to cloud platforms including Azure, AWS and generic MQTT brokers. This US-region model includes a built-in LTE Cat. 1 module and a wide-temperature -T design rated for -40 to 70°C, making it suited to remote and harsh industrial sites.

Built on a 1 GHz Armv7 Cortex-A8 processor with 1 GB DDR3 RAM, it provides two 10/100 Mbps Ethernet ports and two RS-232/422/485 serial ports. Built-in device SDKs, data buffering with store-and-forward and a datalogger, and no-code data processing reduce integration effort. It mounts on a DIN rail or wall and runs from 9 to 36 VDC.

Features

- Generic MQTT client support
- Built-in Azure and AWS device SDKs for MQTT connection
- Modbus RTU/ASCII/TCP master/client and Modbus TCP server
- Built-in network traffic monitoring and diagnostic tool
- Data buffering with store-and-forward and datalogger
- Extends I/O and serial interfaces with Moxa ioLogik and UPort devices
- Built-in data processing functions, no coding required
- 40 to 70°C wide operating temperature range

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Armv7 Cortex-A8 1 GHz
- Memory: 1 GB DDR3 RAM
- Storage: 8 GB eMMC pre-installed, 1 x microSD slot (SD 2.0, SDHC/SDXC)
- Tags supported: 1500
- Ethernet: 2 x 10/100 Mbps RJ45, auto-sensing MDI/MDI-X, 1.5 kV magnetic isolation
- Serial: 2 x RS-232/422/485 (DB9 male), 300 bps to 921.6 kbps
- USB: 1 x USB 2.0 host, Type-A
- Cellular: built-in LTE Cat. 1, US region, Verizon and AT&T approved
- SIM slots: 2 x Nano SIM
- Antenna connectors: 2 x SMA cellular, 1 x SMA GPS
- Ethernet protocols: Modbus TCP Client (Master)/Server (Slave), Generic MQTT, Azure IoT Device, AWS IoT Core, FTP/SFTP
- Serial protocols: Modbus RTU/ASCII Master
- Power input: 9 to 36 VDC
- Operating temperature: -40 to 70°C
- Mounting: DIN-rail or wall mount
- Housing: metal

FAQs

Q: Which cloud platforms does the AIG-101-T-US connect to?
A: It supports Azure IoT Device, AWS IoT Core and generic MQTT brokers, using built-in device SDKs for MQTT connection.

Q: Which Modbus modes are supported?
A: It operates as a Modbus RTU/ASCII master over serial and as a Modbus TCP client (master) or server (slave) over Ethernet.

Q: Does this model include cellular connectivity?
A: Yes. The US-region model has built-in LTE Cat. 1 with two Nano SIM slots and is approved for Verizon and AT&T.

Q: What does the -T suffix mean?
A: The -T denotes the wide-temperature version, rated for operation from -40 to 70°C.

Q: How is the gateway powered and mounted?
A: It runs from a 9 to 36 VDC input and can be mounted on a DIN rail or on a wall.

Q: Can I add more I/O or serial ports?
A: Yes. It integrates with Moxa ioLogik and UPort devices to extend I/O and serial interfaces.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
