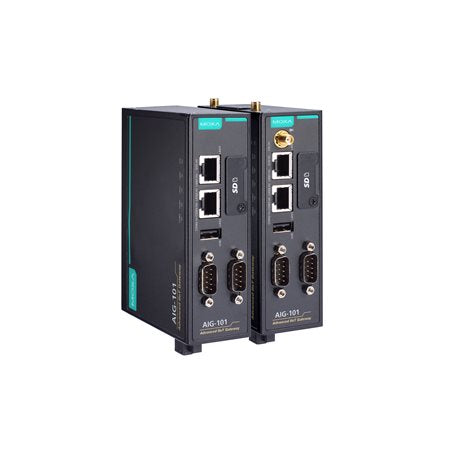

Moxa AIG-101-T-EU | AIG-101 IIoT Gateway, Modbus to MQTT, EU LTE Cat. 1

Authorised Moxa Partner

SKU:AIG-101-T-EU

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa AIG-101-T-EU is an entry-level IIoT gateway that connects Modbus RTU, ASCII and TCP devices to MQTT, Azure and AWS cloud platforms without any programming. This EU region model includes a built-in LTE Cat. 1 module, making it suited to remote sites and retrofit projects where wired backhaul is not available.

Two software-selectable RS-232/422/485 serial ports, dual 10/100 Mbps Ethernet ports and support for up to 1,500 tags let it consolidate field devices at the edge. It runs from 9 to 36 VDC, mounts on a DIN rail and is rated for operation from -40 to 70°C in a metal housing.

Features

- Generic MQTT client
- MQTT connection with built-in device SDKs for Azure and AWS cloud
- Modbus RTU/ASCII/TCP master/client and Modbus TCP server
- Built-in network traffic monitoring and diagnostic tool for troubleshooting
- Data buffering using store-and-forward and datalogger
- Seamless integration with Moxa ioLogik and UPort devices to extend I/O and serial interfaces
- Built-in data processing functions that eliminate programming effort
- FTP/SFTP support

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Armv7 Cortex-A8 1 GHz
- Memory: 1 GB DDR3 RAM
- Storage: 8 GB pre-installed eMMC, 1 x microSD slot (SD 2.0, SDHC/SDXC)
- Ethernet: 2 x 10/100 Mbps RJ45, auto MDI/MDI-X, 1.5 kV magnetic isolation
- Serial: 2 x RS-232/422/485 (DB9 male, software-selectable, 300 bps to 921.6 kbps)
- USB: 1 x USB 2.0 host (Type-A)
- Cellular: LTE Cat. 1, EU region (LTE Bands 1/3/7/8/20/28, UMTS Bands 1/3/8)
- Antenna connectors: 2 x SMA cellular, 1 x SMA GPS, 2 x Nano SIM slots
- Capacity: up to 1,500 tags
- Power input: 9 to 36 VDC via screw-fastened Euroblock terminal, 8 W max.
- Housing: metal, 128.5 x 89.1 x 41 mm, 512 g
- Mounting: DIN-rail (wall mounting with optional kit)
- Operating temperature: -40 to 70°C

FAQs

Q: Which cloud platforms does the AIG-101-T-EU connect to?
A: It connects to MQTT brokers using the generic MQTT client, and includes built-in device SDKs for Azure and AWS cloud connections.

Q: Does this model include cellular connectivity?
A: Yes. The EU region model has a built-in LTE Cat. 1 module covering LTE Bands 1/3/7/8/20/28 and UMTS Bands 1/3/8, with two Nano SIM slots and two SMA cellular antenna connectors.

Q: Which serial and Modbus protocols are supported?
A: The two DB9 serial ports are software-selectable between RS-232, RS-422 and RS-485. The gateway acts as a Modbus RTU/ASCII/TCP master or client and also supports Modbus TCP server mode.

Q: How many data tags can the gateway handle?
A: It supports up to 1,500 tags.

Q: Can I expand the I/O or serial interfaces?
A: Yes. It integrates with Moxa ioLogik and UPort devices to extend I/O and serial interfaces.

Q: What are the power and temperature requirements?
A: It accepts 9 to 36 VDC through a screw-fastened Euroblock terminal, draws 8 W maximum, and operates from -40 to 70°C.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
