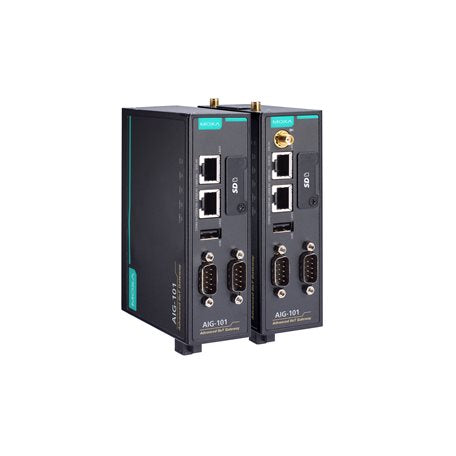

Moxa AIG-101-T-AP | AIG-101 IIoT Gateway, 2-Port Modbus to MQTT, LTE Cat. 1

Authorised Moxa Partner

SKU:AIG-101-T-AP

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The AIG-101-T-AP is an entry-level IIoT gateway that connects Modbus RTU/ASCII/TCP devices to MQTT, Azure and AWS cloud platforms without programming. This Asia-Pacific region variant includes a built-in LTE Cat. 1 module and a -40 to 70°C operating range, making it suited to remote or harsh industrial sites where wired backhaul is not available.

The gateway provides 2 x RS-232/422/485 serial ports and 2 x 10/100 Mbps Ethernet ports, and supports up to 1500 tags. Built-in device SDKs for Azure and AWS, store-and-forward data buffering and seamless integration with Moxa ioLogik and UPort devices let you extend I/O and serial interfaces as a deployment grows.

Features

- Supports generic MQTT client
- MQTT connection with built-in device SDKs for Azure and AWS cloud
- Modbus RTU/ASCII/TCP master/client and Modbus TCP server
- Built-in network traffic monitoring and diagnostic tool for troubleshooting
- Data buffering using store-and-forward and datalogger
- Seamless integration with Moxa ioLogik/UPort devices to extend I/O and serial interfaces
- Built-in data processing function to eliminate programming effort
- Web console (HTTP/HTTPS) configuration, NTP client and GPS time management

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Armv7 Cortex-A8 1 GHz
- 1 GB DDR3 DRAM
- 8 GB eMMC pre-installed storage
- 1 x microSD slot (SD 2.0, SDHC/SDXC)
- Supports up to 1500 tags
- 2 x 10/100 Mbps Ethernet ports (RJ45, auto MDI/MDI-X), 1.5 kV magnetic isolation
- 2 x RS-232/422/485 serial ports (software-selectable, DB9 male), 300 bps to 921.6 kbps
- 1 x USB 2.0 host (Type-A)
- Cellular: LTE Cat. 1 (APAC band option)
- 2 x SMA cellular antenna connectors, 1 x SMA GPS antenna connector, Nano SIM
- Operating temperature: -40 to 70°C

FAQs

Q: Which cloud platforms does the AIG-101-T-AP connect to?
A: It supports a generic MQTT client and includes built-in device SDKs for Azure and AWS cloud connections.

Q: Which Modbus modes are supported?
A: It operates as a Modbus RTU/ASCII/TCP master/client and also as a Modbus TCP server.

Q: Does this model include cellular connectivity?
A: Yes. It has a built-in LTE Cat. 1 module for the Asia-Pacific region, with a Nano SIM slot, 2 x SMA cellular antenna connectors and 1 x SMA GPS antenna connector.

Q: What serial and network interfaces are available?
A: It provides 2 x RS-232/422/485 serial ports (software-selectable, DB9 male) and 2 x 10/100 Mbps RJ45 Ethernet ports with 1.5 kV magnetic isolation.

Q: What is the operating temperature range?
A: The -T variant operates from -40 to 70°C, suitable for harsh industrial environments.

Q: Can I expand the I/O or serial interfaces?
A: Yes. The gateway integrates with Moxa ioLogik and UPort devices to extend I/O and serial interfaces.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
