Moxa AIG-101-T | AIG-101 IIoT Gateway, Modbus to MQTT/Azure/AWS, No LTE

Authorised Moxa Partner

SKU:AIG-101-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

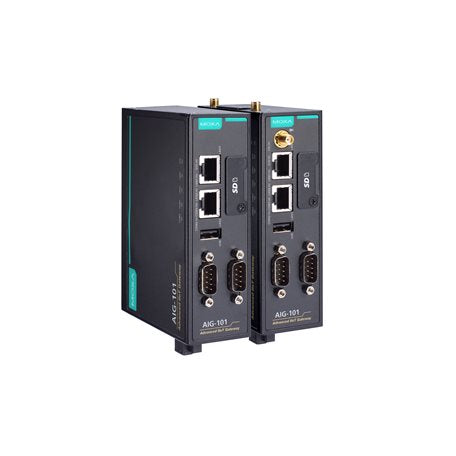

The Moxa AIG-101-T is an entry-level, ready-to-deploy IIoT gateway that connects Modbus RTU/ASCII/TCP devices to MQTT, Azure and AWS cloud platforms without coding. This is the base model with no LTE module, powered from 9 to 36 VDC and rated for -40 to 70°C operation, making it well suited to cabinets, plant rooms and remote industrial sites that already have wired backhaul.

With two 10/100 Mbps Ethernet ports, two software-selectable RS-232/422/485 serial ports and a USB 2.0 host port, the AIG-101-T bridges serial and Ethernet field devices to the cloud. Built-in data processing, store and forward buffering and a datalogger remove the need for custom programming, and it integrates with Moxa ioLogik and UPort devices to extend I/O and serial interfaces.

Features

- Generic MQTT client support
- MQTT connection with built-in device SDKs for Azure and AWS cloud
- Modbus RTU/ASCII/TCP master/client and Modbus TCP server support
- Built-in network traffic monitoring and diagnostic tool for easy troubleshooting
- Data buffering using store and forward and datalogger
- Seamless integration with Moxa ioLogik and UPort devices to extend I/O and serial interfaces
- Built-in data processing function that removes the need for programming
- 40 to 70°C operating temperature range

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Armv7 Cortex-A8 1 GHz
- DRAM: 1 GB DDR3
- Storage: 8 GB eMMC pre-installed, 1 x microSD slot (SD 2.0, SDHC/SDXC)
- Supports up to 1500 tags
- 2 x 10/100 Mbps Ethernet ports (RJ45, auto MDI/MDI-X, 1.5 kV magnetic isolation)
- 2 x RS-232/422/485 serial ports (software-selectable, DB9 male)
- 1 x USB 2.0 host (Type-A)
- Modbus RTU/ASCII/TCP master/client and Modbus TCP server/slave
- Cloud protocols: generic MQTT client, Azure IoT Device, AWS IoT Core, FTP/SFTP
- Input voltage: 9 to 36 VDC, 8 W max, screw-fastened Euroblock terminal
- Housing: metal, 128.5 x 89.1 x 41 mm, DIN-rail mounting (wall mounting with optional kit)
- Operating temperature: -40 to 70°C
- No LTE module (base model)

FAQs

Q: Does the AIG-101-T include an LTE module?
A: No. The AIG-101-T is the base model without a pre-installed LTE module. It connects to the network over its two 10/100 Mbps Ethernet ports.

Q: Which cloud platforms does the AIG-101-T support?
A: It supports a generic MQTT client, Azure IoT Device, AWS IoT Core and FTP/SFTP, with built-in device SDKs for Azure and AWS.

Q: Which Modbus modes are supported?
A: It supports Modbus RTU/ASCII/TCP master/client as well as Modbus TCP server/slave.

Q: What serial interfaces does it provide?
A: Two software-selectable RS-232/422/485 serial ports on DB9 male connectors, plus a USB 2.0 host port.

Q: What power input does it require?
A: It accepts 9 to 36 VDC through a screw-fastened Euroblock terminal, with a maximum draw of 8 W.

Q: How is the AIG-101-T mounted?
A: It has a metal housing for DIN-rail mounting, and wall mounting is available with an optional kit.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
