Moxa A-CRF-RMNM-L1-900 | A-CRF-RMNM LMR-195 Lite Antenna Cable, 9 m, N-Type to RP-SMA

Authorised Moxa Partner

SKU:A-CRF-RMNM-L1-900

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

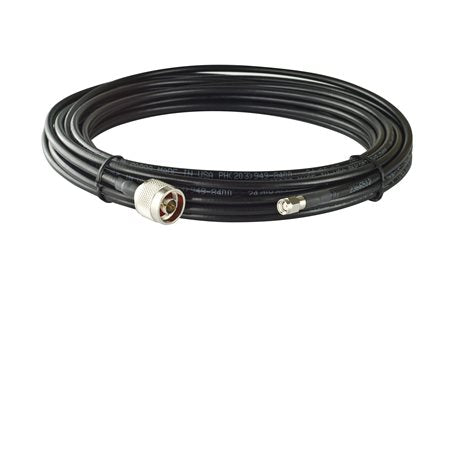

The Moxa A-CRF-RMNM-L1-900 is a 9 m LMR-195 Lite wireless antenna cable with an N-type male connector at one end and an RP-SMA male connector at the other. It suits industrial wireless deployments where the antenna must be mounted away from the access point or client, and the low-loss cable keeps signal attenuation down over the 9 m run.

Part of the A-CRF-RMNM series, this cable is designed for 2.4 GHz and 5 GHz wireless antenna connections. The same series is also offered in 3 m and 6 m lengths, so installers can match the run to the site layout.

Features

- Low-loss LMR-195 Lite cable for 2.4 GHz and 5 GHz wireless antenna connections
- N-type male to RP-SMA male connectors
- 9 m length for remote antenna placement
- Available in 3 m, 6 m and 9 m lengths across the series

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Cable Type: LMR-195 Lite
- Connector Type: N-type (Male) to RP-SMA (Male)
- Cable Length: 9 m
- Outer Diameter: 4.95 mm (0.19 in)
- Min. Bend Radius: 12.7 mm (0.50 in)
- Attenuation: 62.4 @ 2500 MHz, 98.1 @ 5800 MHz
- Package contents: 1 x A-CRF-RMNM Series wireless antenna cable

FAQs

Q: What connectors does the A-CRF-RMNM-L1-900 use?
A: It has an N-type male connector at one end and an RP-SMA male connector at the other.

Q: How long is this antenna cable?
A: This model is 9 m long. The A-CRF-RMNM series also includes 3 m and 6 m versions.

Q: What frequency bands is it designed for?
A: The low-loss LMR-195 Lite cable is intended for 2.4 GHz and 5 GHz wireless antenna connections.

Q: What is the minimum bend radius?
A: The minimum bend radius is 12.7 mm (0.50 in), with a cable outer diameter of 4.95 mm (0.19 in).

Q: What is the signal attenuation of this cable?
A: Attenuation is 62.4 at 2500 MHz and 98.1 at 5800 MHz.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
