Moxa 86M-5250-T | ioPAC 8600 CAN Interface I/O Module, 2 CAN Ports, -40 to 75°C

Authorised Moxa Partner

SKU:86M-5250-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa 86M-5250-T is a rugged CAN interface I/O module for the ioPAC 8600 Series (86M) modular controller and I/O platform. It provides 2 isolated CAN ports on DB9 male connectors and supports CAN 2.0A, CAN 2.0B and CANopen DS301 V4.02, making it well suited to industrial automation, rail and other harsh-environment deployments that need reliable CAN bus connectivity.

The module operates across a wide -40 to 75°C temperature range, supports baudrates from 10 kbps to 1000 kbps plus user-defined rates, and delivers 3k VDC isolation. It carries railway EN 50121-4 and EN 50155 certification alongside UL 508 approval, and is tested to shock and vibration standards, so it fits control cabinets and rolling stock where reliability is critical.

Features

- Wide operating temperature range of -40 to 75°C for harsh environments
- Isolated CAN ports protect signal integrity
- Railway certification EN 50121-4 and EN 50155
- UL 508 safety approval
- EMC compliance: EN 55032/24, EN 61000-6-2/-6-4, FCC Part 15B Class A
- Shock (IEC 60068-2-27) and vibration (IEC 60068-2-6) tested

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 2 x CAN ports (DB9 male connectors)
- CAN 2.0A, CAN 2.0B, CANopen DS301 V4.02
- Baudrate: 10/20/50/125/250/500/800/1000 kbps, user-defined
- Isolation: 3k VDC or 2k Vrms
- Power consumption: 60.0 mA @ 24 VDC
- Dimensions: 25 x 128.2 x 85.5 mm
- Weight: under 80 g
- Operating temperature: -40 to 75°C (-40 to 167°F)
- Storage temperature: -40 to 85°C
- Ambient relative humidity: 5 to 95% (non-condensing)
- Altitude: up to 2000 m
- Wiring: I/O cable, 16 to 28 AWG
- MTBF: 3,306,609 hrs (Telcordia SR332)

FAQs

Q: How many CAN ports does the Moxa 86M-5250-T have?
A: It provides 2 isolated CAN ports on DB9 male connectors.

Q: Which CAN protocols does it support?
A: It supports CAN 2.0A, CAN 2.0B and CANopen DS301 V4.02.

Q: What baudrates are supported?
A: Supported baudrates are 10, 20, 50, 125, 250, 500, 800 and 1000 kbps, plus user-defined rates.

Q: What is the operating temperature range?
A: The module operates from -40 to 75°C (-40 to 167°F), suiting harsh industrial environments.

Q: Is this module suitable for railway applications?
A: Yes. It carries railway certification to EN 50121-4 and EN 50155, and is tested to shock and vibration standards.

Q: Which platform does this module belong to?

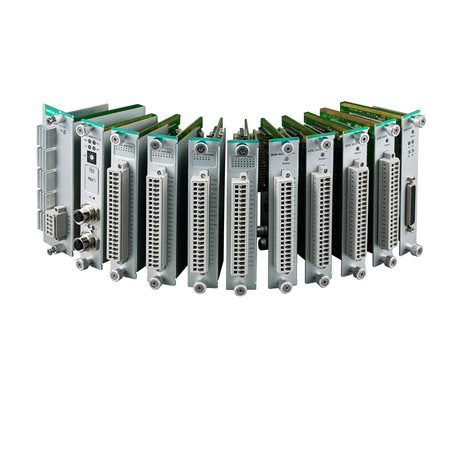

A: It is part of the Moxa ioPAC 8600 Series (86M) modules for the rugged ioPAC 8600 modular controller and I/O system.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
