Moxa 86M-5212U-T | ioPAC 8600 2-Port 2-Wire Ethernet Switch Module, -40 to 75°C

Authorised Moxa Partner

SKU:86M-5212U-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

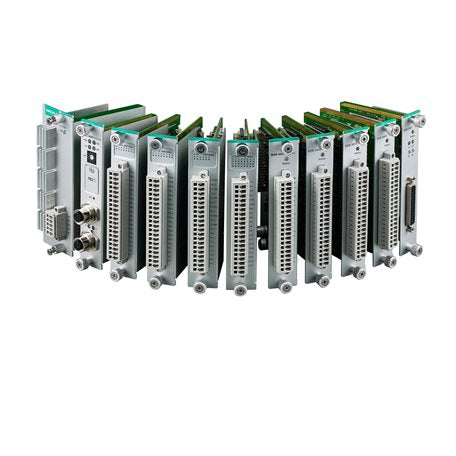

The Moxa 86M-5212U-T is a rugged ioPAC 8600 Series 2-port 2-wire Ethernet switch module for industrial edge and rail connectivity. It uses Moxa's 2-wire Ethernet technology to carry 10/100 Mbps Ethernet over existing 2-wire cable, and it operates across a wide -40 to 75°C temperature range.

The module connects to the ioPAC 8600 backplane Ethernet bus and adds networked I/O capability to the modular programmable controller. An Ethernet bypass function helps keep the Ethernet backbone running if a single ioPAC unit loses power, supporting resilient deployments in demanding environments.

Features

- 2-wire Ethernet technology delivers 10/100 Mbps Ethernet over existing 2-wire cable, reducing cable usage and weight
- Ethernet bypass function keeps the Ethernet backbone running if one ioPAC unit loses power
- Works with the ioPAC 8600 modular controller, which supports C/C++ and IEC 61131-3 programming
- Rugged design for rail and industrial edge use, compliant with EN 50121-4 (ioPAC 8600 series)

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 2 x 2-wire Ethernet ports
- Module for ioPAC 8600 Series (86M modules)
- Operating temperature: -40 to 75°C
- Isolation: 3k VDC or 2k Vrms (86M module family specification)
- Connects to the ioPAC 8600 backplane Ethernet bus

FAQs

Q: What is the Moxa 86M-5212U-T used for?
A: It is a 2-port 2-wire Ethernet switch module for the ioPAC 8600 modular programmable controller, used to extend Ethernet connectivity over existing 2-wire cable in rugged industrial and rail applications.

Q: What controller is this module compatible with?
A: It is an 86M module designed for the ioPAC 8600 Series and connects to the ioPAC 8600 backplane Ethernet bus.

Q: What operating temperature range does it support?
A: The module operates from -40 to 75°C, suitable for harsh industrial and rail environments.

Q: What speed does the 2-wire Ethernet connection provide?
A: Moxa's 2-wire Ethernet technology delivers 10/100 Mbps Ethernet over existing 2-wire cable.

Q: What happens if one ioPAC unit loses power?
A: The Ethernet bypass function keeps the Ethernet backbone running so the rest of the network stays connected.

Q: Which programming languages does the ioPAC 8600 platform support?
A: The ioPAC 8600 modular controller supports C/C++ and IEC 61131-3 programming.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
