Moxa 86M-4420-T | ioPAC 8600 Analog Output Module, 4-Channel, V/mA, -40 to 75°C

Authorised Moxa Partner

SKU:86M-4420-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

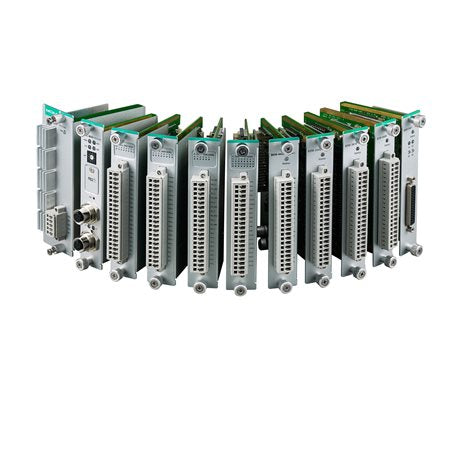

The Moxa 86M-4420-T is a rugged 4-channel analog output I/O module for the ioPAC 8600 Series modular RTU controller. Each channel is configurable for voltage or current output, with selectable ranges of 0 to 10 V, -10 to 10 V, 0 to 20 mA and 4 to 20 mA, and the module operates across a wide -40 to 75°C temperature range.

With 12-bit resolution, static or waveform output modes and 3k VDC isolation, it suits process control, valve and actuator drive, and remote monitoring applications in harsh industrial environments. It forms part of the ioPAC 8600 Series (86M) modular I/O family alongside digital input, digital output, relay and other module types.

Features

- Wide operating temperature range of -40 to 75°C
- Rugged design for harsh industrial environments
- Selectable voltage or current output per channel
- Static or waveform output modes
- Part of the ioPAC 8600 Series modular I/O family (DI, DO, relay, AO and other modules)

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 4 x analog output channels
- Output ranges: 0 to 10 V, -10 to 10 V, 0 to 20 mA, 4 to 20 mA
- 12-bit resolution
- Accuracy: ±0.1% FSR @ 25°C, ±0.3% FSR @ -40 to 75°C
- Static or waveform I/O mode (sine, square, triangle; 125 Hz waveform frequency)
- Voltage output: 10 mA max.
- Isolation: 3k VDC or 2k Vrms
- Connector: spring-type Euroblock terminal
- Wiring: I/O cable, 16 to 28 AWG
- Power consumption: 143.8 mA @ 24 VDC
- Dimensions: 25 x 128.2 x 85.5 mm
- Weight: under 80 g
- Operating temperature: -40 to 75°C (-40 to 167°F)
- Storage temperature: -40 to 85°C
- Ambient relative humidity: 5 to 95% (non-condensing)

FAQs

Q: What output types does the Moxa 86M-4420-T support?
A: Each of the 4 channels can be configured for voltage output (0 to 10 V or -10 to 10 V) or current output (0 to 20 mA or 4 to 20 mA).

Q: Which controller family is this module designed for?
A: It is an I/O module for the Moxa ioPAC 8600 Series modular RTU controller, part of the 86M module range.

Q: What is the operating temperature range?
A: The module operates from -40 to 75°C (-40 to 167°F), making it suitable for harsh and outdoor industrial installations.

Q: Does it support waveform output?
A: Yes. Besides static output, it supports waveform I/O mode with sine, square and triangle waveforms at a 125 Hz waveform frequency.

Q: What resolution and accuracy does it offer?
A: It provides 12-bit resolution with accuracy of ±0.1% FSR at 25°C and ±0.3% FSR across -40 to 75°C.

Q: How is the module wired?
A: It uses a spring-type Euroblock terminal connector, accepting I/O cable from 16 to 28 AWG.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
