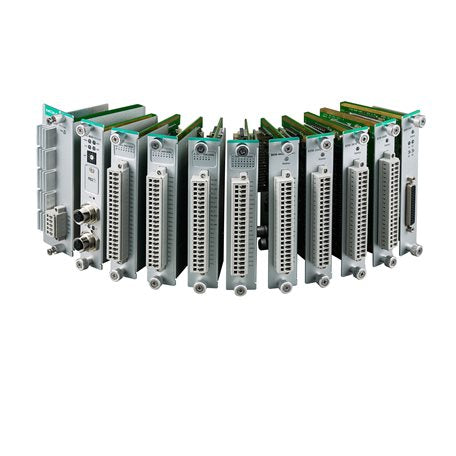

• Moxa 86M-2830D-T rugged ioPAC module with silver housing, green boards, DO connectors
1 1

Moxa

Moxa 86M-2830D-T | ioPAC 8600 Digital Output Module, 8 DOs, 24 VDC Sink, Isolated

Moxa 86M-2830D-T | ioPAC 8600 Digital Output Module, 8 DOs, 24 VDC Sink, Isolated

Authorised Moxa Partner

86M-2830D-T

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Moxa 86M-2830D-T is a rugged ioPAC 8600 Series digital output module with 8 DO channels, 24 VDC sink outputs, channel-to-channel isolation and per-channel LED indicators. It suits industrial automation and edge connectivity deployments where reliable switching of field devices is needed across a -40 to 75°C operating range.

Each channel is rated at 200 mA and can be configured for DO or PWM mode, with over-voltage and short-circuit protection built in. Spring-type Euroblock terminals allow tool-free wiring, and the module slots into the modular ioPAC 8600 rugged controller and I/O platform.

Features

- Channel-to-channel isolated digital outputs
- Channel status LED indicators
- Wide operating temperature range of -40 to 75°C
- Spring-type Euroblock terminal for tool-free wiring
- DO or PWM output mode selectable
- Part of the modular ioPAC 8600 rugged controller and I/O platform

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 8 x Digital Output channels
- 24 VDC, sink type
- 200 mA per channel current rating
- I/O mode: DO or PWM
- Pulse output frequency: 1 kHz
- Over-voltage protection: 41 VDC
- Short-circuit protection: 750 mA @ 25°C
- Isolation: 3k VDC or 2k Vrms
- Connector: Spring-type Euroblock terminal
- Wiring: I/O cable, 16 to 28 AWG
- Power consumption: 76.7 mA @ 24 VDC
- Dimensions: 25 x 128.2 x 85.5 mm
- Weight: under 80 g
- Operating temperature: -40 to 75°C

FAQs

Q: What platform is the Moxa 86M-2830D-T designed for?
A: It is an I/O module for the Moxa ioPAC 8600 Series modular rugged controller and I/O platform.

Q: Is this a sink or source output module?
A: It provides 24 VDC sink type digital outputs across 8 channels.

Q: What is the current rating per channel?
A: Each digital output channel is rated at 200 mA.

Q: Can the outputs be used for PWM?
A: Yes. The I/O mode can be set to DO or PWM, with a pulse output frequency of 1 kHz.

Q: What isolation does the module provide?
A: It offers channel-to-channel isolation, with isolation rated at 3k VDC or 2k Vrms.

Q: What is the operating temperature range?
A: The module operates from -40 to 75°C, suiting harsh industrial environments.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
