Moxa 86M-2821D-T | ioPAC 8600 Digital Output Module, 8 DOs, 24-110 VDC, Source

Authorised Moxa Partner

SKU:86M-2821D-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

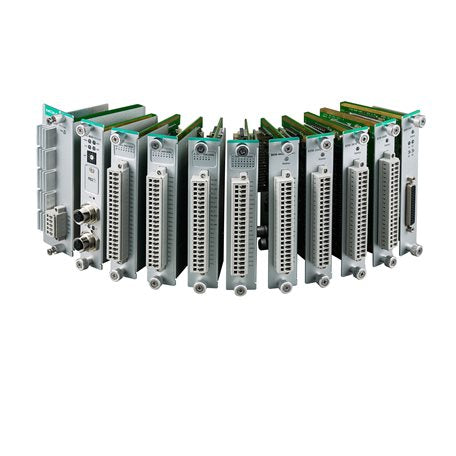

The Moxa 86M-2821D-T is an ioPAC 8600 Series digital output module with 8 source-type channels rated for 24 to 110 VDC. Each channel supports up to 1500 mA and can be configured for standard DO or PWM operation, making it suited to switching actuators, relays and field devices in rail, utility and factory automation deployments. Channel LEDs give clear on-site status indication.

Built for harsh environments, the module operates from -40 to 75°C and carries EN 50155 and EN 50121-4 railway standards alongside UL 508 safety certification. Spring-type Euroblock terminals allow quick wiring, and built-in over-voltage and short-circuit protection help safeguard the module in the field. It is designed for use with Moxa ioPAC 8600 Series rugged modular controllers.

Features

- Channel LED indicators for at-a-glance status
- Wide-temperature rugged design (-40 to 75°C)
- Railway-grade compliance (EN 50155, EN 50121-4)
- Supports DO or PWM output modes
- Spring-type Euroblock terminals for tool-free wiring
- Over-voltage and short-circuit protection

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 8 x digital output channels
- I/O type: Source
- Output voltage: 24 to 110 VDC
- Current rating: 1500 mA per channel
- I/O mode: DO or PWM
- Pulse output frequency: 100 Hz
- Over-voltage protection: 160 VDC
- Short-circuit protection: 2800 mA @ 25°C
- Connector: Spring-type Euroblock terminal
- Wiring: I/O cable, 16 to 28 AWG
- Power consumption: 85.2 mA @ 24 VDC
- Dimensions: 25 x 128.2 x 85.5 mm
- Weight: under 80 g
- Operating temperature: -40 to 75°C
- Certifications/standards: EN 50121-4, EN 50155 (railway), UL 508 (safety)
- Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6

FAQs

Q: What voltage range do the outputs support?
A: The 8 source-type digital outputs are rated for 24 to 110 VDC, with a current rating of 1500 mA per channel.

Q: Can the channels be used for PWM?
A: Yes. Each channel can operate in DO or PWM mode, with a pulse output frequency of 100 Hz.

Q: What platform is this module designed for?
A: It is an I/O module for the Moxa ioPAC 8600 Series rugged modular controllers.

Q: Is it suitable for railway applications?
A: Yes. The module complies with EN 50155 and EN 50121-4 railway standards and operates from -40 to 75°C.

Q: What protection is built in?
A: It provides over-voltage protection to 160 VDC and short-circuit protection at 2800 mA @ 25°C.

Q: How is field wiring connected?
A: Wiring uses spring-type Euroblock terminals that accept 16 to 28 AWG I/O cable.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
