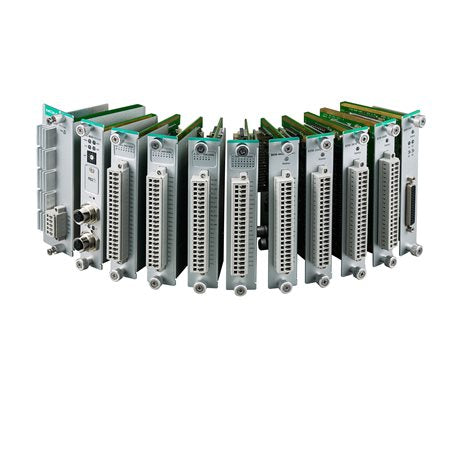

• Moxa 86M-1620D-T rugged ioPAC module with silver housing, green boards, connectors
1 1

Moxa

Moxa 86M-1620D-T | ioPAC 8600 16-Ch Sink Digital Input Module, 24-110 VDC, LED

Moxa 86M-1620D-T | ioPAC 8600 16-Ch Sink Digital Input Module, 24-110 VDC, LED

Authorised Moxa Partner

86M-1620D-T

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Moxa 86M-1620D-T is a rugged ioPAC 8600 Series digital input module with 16 sink-type DI channels, a 24 to 110 VDC input range and per-channel LED indicators. It expands the I/O capability of ioPAC 8600 Series rugged controllers and is built for harsh environments such as rail and industrial automation, with a wide operating temperature of -40 to 75°C.

The compact, hot-swappable module complies with EN 50155 mandatory test items and EN 50121-4, making it suitable for demanding rolling stock and wayside applications. The channel LEDs give clear on-site status for each input, simplifying commissioning and maintenance.

Features

- Complies with all EN 50155 mandatory test items
- Complies with EN 50121-4
- Rugged and compact design for harsh environments
- Expands I/O capability of ioPAC 8600 Series devices
- Wide operating temperature range of -40 to 75°C
- Hot-swappable modules

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 16 x digital input channels
- Sink type
- 24 to 110 VDC input voltage
- Channel LED indicators
- Operating temperature: -40 to 75°C (-40 to 167°F)
- Compatible with ioPAC 8600 Series controllers

FAQs

Q: Which controllers is the Moxa 86M-1620D-T compatible with?
A: It is designed for the ioPAC 8600 Series rugged controllers, where it expands the available digital input channels.

Q: What input voltage range does this module support?
A: It supports a wide 24 to 110 VDC input range across its 16 sink-type digital input channels.

Q: What is the operating temperature range?
A: The module operates from -40 to 75°C (-40 to 167°F), suitable for extreme industrial and rail environments.

Q: Does the module comply with rail standards?
A: Yes, it complies with all EN 50155 mandatory test items and EN 50121-4.

Q: Can the module be hot-swapped?
A: Yes, the ioPAC 8600 Series modules are hot-swappable, which reduces downtime during maintenance.

Q: How can I check the status of each input?
A: Each of the 16 channels has its own LED indicator, giving clear on-site input status.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
