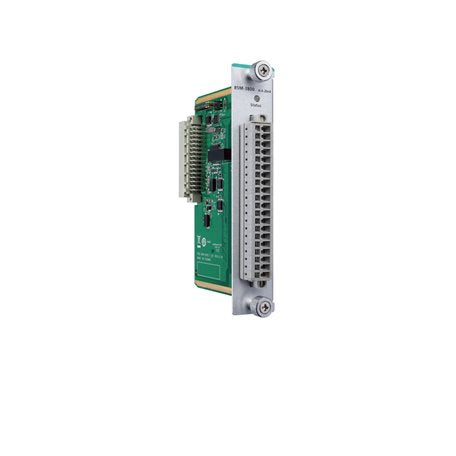

Moxa 85M-6600-T | ioPAC 8500 Rugged 6-Channel RTD Input Module, -40 to 75°C

Authorised Moxa Partner

SKU:85M-6600-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa 85M-6600-T is a rugged RTD input module with 6 x RTD channels, built to expand the I/O capability of Moxa ioPAC 8600 and 8500 Series controllers. It supports 2- or 3-wire RTD connections and operates across a wide -40 to 75°C range, making it well suited to railway and other harsh industrial environments.

With a compact 25 mm wide housing, spring-type Euroblock terminals and 3k VDC isolation, this ioPAC 8500 Series (85M) module offers dependable temperature signal acquisition. It complies with EN 50121-4 and a portion of EN 50155, with shock and vibration testing to IEC 60068-2-27 and IEC 60068-2-6.

Features

- Complies with EN 50121-3-2, EN 50121-4 and a portion of EN 50155
- Rugged, compact design for harsh environments
- Expands the I/O and communication capabilities of ioPAC 8600 or 8500 Series devices
- Wide operating temperature range of -40 to 75°C

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 6 x RTD channels
- RTD input connection: 2- or 3-wire
- RTD accuracy: ±0.1% FSR @ 25°C, ±0.3% FSR @ -40 to 75°C
- Input impedance: 625 kilo-ohms (min.)
- Isolation: 3k VDC or 2k Vrms
- Connector: Spring-type Euroblock terminal
- Wiring: I/O cable, 14 to 28 AWG
- Power consumption: 27.7 mA @ 24 VDC
- Dimensions: 25 x 128.2 x 85.5 mm
- Weight: under 80 g
- Operating temperature: -40 to 75°C (-40 to 167°F)
- Storage temperature: -40 to 85°C
- Humidity: 5 to 95% (non-condensing)
- Altitude: up to 2000 m
- MTBF: 571,446 hrs (Telcordia SR332)
- Standards: EN 50121-4, a portion of EN 50155, UL 508, IEC 60068-2-27 (shock), IEC 60068-2-6 (vibration)

FAQs

Q: What controllers is the Moxa 85M-6600-T compatible with?
A: It is an expansion module for Moxa ioPAC 8600 and 8500 Series controllers.

Q: How many RTD channels does it provide?
A: It provides 6 x RTD channels, supporting 2- or 3-wire RTD connections.

Q: What temperature range can it operate in?
A: The module operates from -40 to 75°C (-40 to 167°F), suitable for harsh and outdoor industrial environments.

Q: What is the RTD measurement accuracy?
A: Accuracy is ±0.1% FSR at 25°C and ±0.3% FSR across -40 to 75°C.

Q: Is it suitable for railway applications?
A: Yes. It complies with EN 50121-4 and a portion of EN 50155, and is designed for railway and other harsh environments.

Q: What wiring does it accept?
A: It uses spring-type Euroblock terminals that accept I/O cable from 14 to 28 AWG.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
