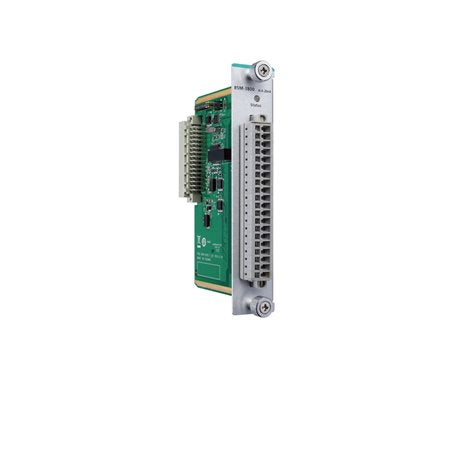

Moxa 85M-3811-T | ioPAC 8500 Analog Input Module, 8 AIs, 0-10V, 40kHz

Authorised Moxa Partner

SKU:85M-3811-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa 85M-3811-T is a rugged ioPAC 8500 Series analog input module with 8 differential 0 to 10 V channels and sampling rates up to 40 kHz. Built for industrial edge connectivity, it operates across -40 to 75°C, making it suited to fast data acquisition in harsh environments such as rail, energy and process control.

The module offers 16-bit resolution, 3k VDC isolation and per-channel historical data buffering with millisecond timestamping. It is compatible with both ioPAC 8500 and ioPAC 8600 Series controllers and connects via a spring-type Euroblock terminal for fast, tool-light wiring.

Features

- Compatible with both ioPAC 8500 and ioPAC 8600 Series devices
- Wide operating temperature range of -40 to 75°C
- Millisecond timestamp granularity for analog input
- Sampling rates up to 40 kHz for fast signal capture
- Pre-recording for analog input data logging
- Spring-type Euroblock terminal for quick wiring

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 8 x differential analog input channels
- Input range: 0 to 10 VDC
- Resolution: 16 bits
- Sampling rate: 40k samples/sec (all channels), 5k samples/sec per channel
- Accuracy: ±0.1% FSR @ 25°C, ±0.3% FSR @ -40 to 75°C
- Input impedance: 20 MΩ (min.)
- Isolation: 3k VDC or 2k Vrms
- Historical data buffering: 60 KB per channel (6-second buffer at 5 kHz)
- Connector: Spring-type Euroblock terminal
- Power consumption: 52.1 mA @ 24 VDC
- Dimensions: 25 x 128.2 x 85.5 mm
- Weight: under 80 g
- Operating temperature: -40 to 75°C

FAQs

Q: What controllers is the Moxa 85M-3811-T compatible with?
A: It is compatible with both ioPAC 8500 and ioPAC 8600 Series devices.

Q: What input range does this module support?
A: It provides 8 differential analog input channels with a 0 to 10 VDC range and 16-bit resolution.

Q: How fast can the module sample?
A: It samples at up to 40k samples per second across all channels, or 5k samples per second per channel.

Q: What temperature range can it operate in?
A: The module operates from -40 to 75°C, suitable for harsh industrial environments.

Q: Does it support data logging?
A: Yes. It offers 60 KB of historical data buffering per channel, roughly a 6-second buffer at 5 kHz, with millisecond timestamping and pre-recording.

Q: What type of terminal does the module use?
A: It uses a spring-type Euroblock terminal connector.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
