Moxa 85M-2600-T | ioPAC 8500 16-Channel DO Module, 24 VDC Sink

Authorised Moxa Partner

SKU:85M-2600-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

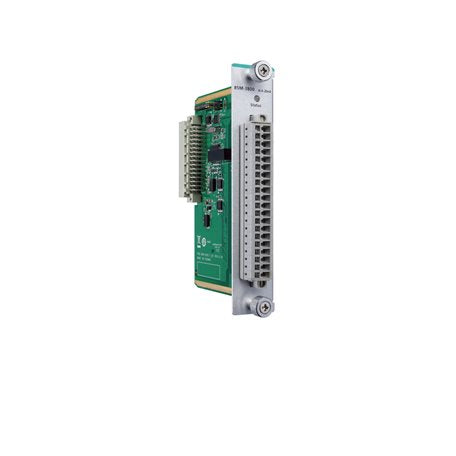

The Moxa 85M-2600-T is a rugged 16-channel digital output module with 24 VDC sink outputs, designed for the ioPAC 8500/8600 Series rugged controllers. Each channel is rated at 200 mA and can be configured as a standard digital output or a PWM output, with a 5 kHz pulse output frequency for switching and control tasks in industrial automation.

Built for harsh environments, the module operates across -40 to 75°C and includes per-channel over-current protection and over-temperature shutdown. Isolation of 3k VDC and a spring-type Euroblock terminal for 14 to 28 AWG I/O wiring make it a dependable I/O expansion option for rugged edge control systems.

Features

- Wide operating temperature range of -40 to 75°C
- Compatible with the ioPAC 8500/8600 Series
- Digital outputs configurable as DO or PWM
- Per-channel over-current protection and over-temperature shutdown
- 3k VDC isolation for reliable operation in electrically noisy environments
- Spring-type Euroblock terminal for fast, tool-light wiring

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 16 x digital output channels
- 24 VDC, sink type
- 200 mA per channel current rating
- I/O mode: DO or PWM
- Pulse output frequency: 5 kHz
- Over-current protection: 0.65 A per channel @ 25°C
- Over-temperature shutdown: 175°C (typical), 150°C (min.)
- Isolation: 3k VDC or 2k Vrms
- Connector: Spring-type Euroblock terminal
- Wiring: I/O cable, 14 to 28 AWG
- Power consumption: 35.4 mA @ 24 VDC
- Dimensions: 25 x 128.2 x 85.5 mm
- Weight: under 80 g
- Operating temperature: -40 to 75°C
- Storage temperature: -40 to 85°C
- Ambient relative humidity: 5 to 95% (non-condensing)

FAQs

Q: What controllers is the Moxa 85M-2600-T compatible with?
A: It is designed for the Moxa ioPAC 8500/8600 Series rugged controllers as a digital output expansion module.

Q: Is this a sink or source output module?
A: It provides 24 VDC sink type digital outputs across 16 channels.

Q: What is the current rating of each output channel?
A: Each channel is rated at 200 mA, with over-current protection at 0.65 A per channel at 25°C.

Q: Can the outputs be used for PWM?
A: Yes. Each channel can be configured in DO or PWM mode, with a pulse output frequency of 5 kHz.

Q: What operating temperature range does the module support?
A: The 85M-2600-T operates from -40 to 75°C, suitable for extreme industrial environments.

Q: What wire size does the terminal accept?
A: The spring-type Euroblock terminal accepts I/O cable from 14 to 28 AWG.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
