Moxa 85M-1602-T | ioPAC 8500 16-Channel Digital Input Module, 24 VDC, Sink/Source

Authorised Moxa Partner

SKU:85M-1602-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

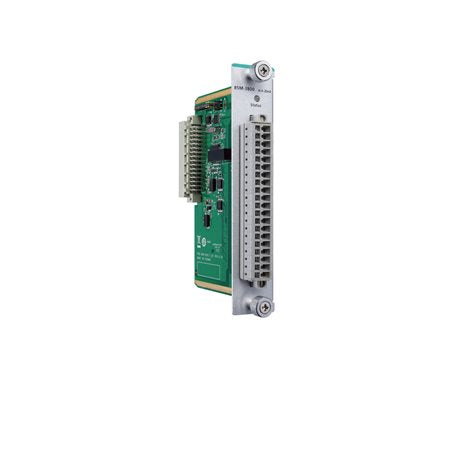

The Moxa 85M-1602-T is a rugged 16-channel 24 VDC digital input module with sink/source support, built for the ioPAC 8500 and 8600 Series controllers. It accepts both dry contact and wet contact (NPN/PNP) sensors, and each channel can operate as a standard digital input, event counter or frequency input. An operating range of -40 to 75°C makes it suited to harsh industrial edge connectivity deployments.

Isolation of 3k VDC or 2k Vrms protects the controller from field-side faults, while spring-type Euroblock terminals accept 14 to 28 AWG wiring for fast, tool-free installation. With 8 channels per COM and a compact 25 x 128.2 x 85.5 mm body, it adds dense digital input capacity to ioPAC 8500/8600 systems without taking up excess space.

Features

- Wide -40 to 75°C operating temperature for harsh environments
- Flexible DI, event counter or frequency input modes
- Supports both dry and wet contact sensors
- 3k VDC / 2k Vrms isolation protection
- Spring-type Euroblock terminals for tool-free wiring
- Compatible with ioPAC 8500/8600 Series controllers

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 16 x digital input channels
- 24 VDC, sink/source (dry contact or wet contact NPN/PNP)
- I/O modes: DI, event counter or frequency (counter frequency 5 kHz)
- 8 channels per COM
- Isolation: 3k VDC or 2k Vrms
- Connector: spring-type Euroblock terminal
- Wet contact: On 10 to 30 VDC, Off 0 to 3 VDC
- Dry contact: On short to GND, Off open
- Power consumption: 50.0 mA @ 24 VDC
- Dimensions: 25 x 128.2 x 85.5 mm
- Weight: under 80 g
- Wiring: I/O cable, 14 to 28 AWG
- Operating temperature: -40 to 75°C
- Storage temperature: -40 to 85°C
- Humidity: 5 to 95% non-condensing
- MTBF: 1,132,561 hrs (Telcordia SR332)

FAQs

Q: Which controllers is the Moxa 85M-1602-T compatible with?
A: It is an I/O module for the Moxa ioPAC 8500 and 8600 Series controllers.

Q: Does it support both sink and source sensors?
A: Yes. The 16 inputs support sink/source wiring, covering dry contact and wet contact (NPN/PNP) sensors.

Q: What input modes are available on each channel?
A: Each channel can be configured as a standard digital input, an event counter or a frequency input, with a counter frequency of 5 kHz.

Q: What is the operating temperature range?
A: The module operates from -40 to 75°C, making it suitable for harsh industrial environments.

Q: What voltage levels does the wet contact input recognise?
A: For wet contact, On is 10 to 30 VDC and Off is 0 to 3 VDC. For dry contact, On is short to GND and Off is open.

Q: What wiring and isolation does the module provide?
A: It uses spring-type Euroblock terminals accepting 14 to 28 AWG wire, with 3k VDC or 2k Vrms isolation and 8 channels per COM.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
