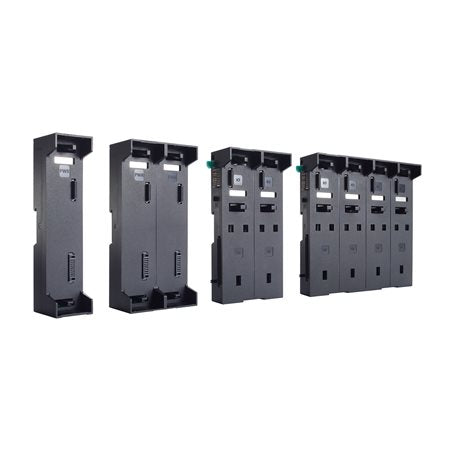

Moxa 65M-BMIO02-CT-T | ioPAC 6500 2-Slot Backplane Module, Conformal Coated, -40 to 75°C

Authorised Moxa Partner

SKU:65M-BMIO02-CT-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa 65M-BMIO02-CT-T is a 2-slot backplane module for the ioPAC 6500 modular Linux-based programmable controller. It provides two I/O slots, a conformal coating for protection in harsh environments, and a wide operating temperature range of -40 to 75°C, making it suited to industrial automation, SCADA and edge connectivity deployments.

The module mounts on a DIN rail, with rack mounting available using an optional kit. Its fully modular, tool-free and hot-swappable design allows flexible system expansion, and the ioPAC 6500 platform supports multiple IT/OT protocols plus Turbo Ring, Turbo Chain and RSTP/STP network redundancy.

Features

- Tool-free hardware installation and hot-swappable design
- Fully modular design for flexible deployment
- Supports multiple IT/OT protocols for communication between SCADA, plant information systems and cloud applications
- Turbo Ring, Turbo Chain and RSTP/STP network redundancy on the ioPAC 6500 platform
- IINxpress IDE combines IEC 61131-3 programming, configuration and protocol services
- Developed according to IEC 62443-4-2 SL2 standards

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 2 slots for I/O modules
- Operating temperature: -40 to 75°C (-40 to 167°F)
- Conformal coated (CT), wide temperature (-T)
- Dimensions: 86 x 177 x 45.5 mm (3.39 x 6.97 x 1.79 in)
- Weight: 205 g (0.45 lb)
- Housing: Plastic
- Installation: DIN-rail mounting; rack mounting with optional kit

FAQs

Q: How many I/O modules does the 65M-BMIO02-CT-T support?
A: This backplane module provides 2 slots for I/O modules.

Q: What temperature range is it rated for?
A: It is rated for operation from -40 to 75°C (-40 to 167°F), and is conformal coated for added protection in harsh environments.

Q: How is the backplane module mounted?
A: It mounts on a DIN rail. Rack mounting is possible with an optional kit.

Q: Which platform is this backplane module used with?
A: It is part of the Moxa ioPAC 6500 series (65M), a modular Linux-based programmable controller platform.

Q: Does it support hot-swapping?
A: Yes, the ioPAC 6500 design is hot-swappable with tool-free hardware installation.

Q: What are the dimensions and weight?
A: It measures 86 x 177 x 45.5 mm and weighs 205 g.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
