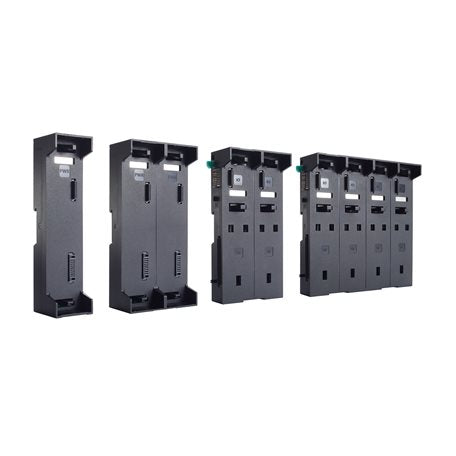

Moxa 65M-BMEXP01-CT-T | ioPAC 6500 Expansion Backplane Module, 1 Slot, Conformal Coated

Authorised Moxa Partner

SKU:65M-BMEXP01-CT-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The ioPAC 6500 Series (65M) 1-slot expansion backplane module is a conformal coated backplane for Moxa's modular Linux-based ioPAC 6500 RTU and controller platform. It hosts one expansion module and sits between the CPU and I/O backplane modules in the assembly sequence (power, communication, CPU, expansion, I/O), and is rated for operation from -40 to 75°C.

The backplane supports tool-free, hot-swap installation, and a 2 x 2 pin grid design prevents erroneous installation. Mounting is by DIN rail, or rack with an optional kit. The housing is plastic, and the unit carries a 5-year Moxa warranty period listed in the product specifications.

Features

- Tool-free hardware installation and hot-swap design for maximum operating efficiency
- Fully modular design for flexible deployment
- 2 x 2 pin grid design to prevent erroneous installations
- Conformal coating for protection in harsh environments
- Wide -40 to 75°C operating temperature range
- DIN-rail mounting, with rack mounting available using an optional kit

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Slots: 1 (for 1 expansion module)
- Conformal coating
- Housing: Plastic
- Dimensions (H x W x D): 43 x 177 x 45.5 mm
- Weight: 173 g
- Installation: DIN-rail mounting; rack mounting with optional kit
- Operating temperature: -40 to 75°C (proper airflow required above 65°C)
- Storage temperature: -40 to 85°C
- Ambient relative humidity: 5 to 95% (non-condensing)
- Altitude: 2000 m
- EMC: EN 55032/35, EN 61000-6-2/-6-4
- Safety: UL 61010-1, UL 61010-2-201
- Shock: IEC 60068-2-27, half sine wave, 15 g, 11 ms
- MTBF: 1,856,744,727 hrs (Telcordia SR-332)
- Package contents: 1 x backplane module, 1 x quick installation guide, 1 x warranty card

FAQs

Q: What does this backplane module do?
A: It is a single-slot expansion backplane for the ioPAC 6500 Series (65M) modular controller. It hosts one expansion module and connects the CPU and I/O backplane modules.

Q: Where does it sit in the ioPAC 6500 assembly?
A: The assembly sequence is power, communication, CPU, expansion, then I/O. This module occupies the expansion position between the CPU and I/O backplane modules.

Q: Is this module hot-swappable?
A: Yes. The ioPAC 6500 backplane modules use a tool-free, hot-swap design for installation.

Q: What operating temperature range does it support?
A: The operating range is -40 to 75°C. Proper airflow is required above 65°C.

Q: How can it be mounted?
A: It supports DIN-rail mounting, and rack mounting is available with an optional kit.

Q: How many expansion modules can this backplane hold?
A: This 1-slot variant hosts a single expansion module.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
