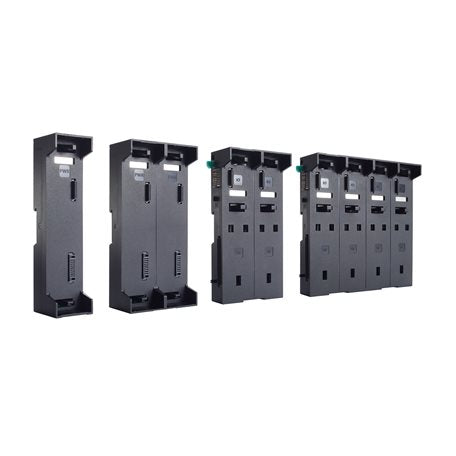

Moxa 65M-BMCPU02-CT-T | ioPAC 6500 2-Slot CPU Backplane, Conformal Coating, -40 to 75°C

Authorised Moxa Partner

SKU:65M-BMCPU02-CT-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa 65M-BMCPU02-CT-T is a 2-slot CPU backplane module for the ioPAC 6500 modular, Linux-based RTU and controller platform. It supports CPU modules, features conformal coating for added protection in harsh industrial environments, and is rated for operation from -40 to 75°C.

The backplane uses a plastic housing with DIN-rail mounting, and rack mounting is possible with an optional kit. Its 2 x 2 pin grid design prevents erroneous installation, and the modular ioPAC 6500 system follows an enforced assembly sequence of PWR, COM, CPU, EXP and IO for reliable deployment.

Features

- Tool-free hardware installation and hot-swap design
- Fully modular design for flexible deployment
- 2 x 2 pin grid design prevents erroneous installation
- Assembly sequence enforced: PWR > COM > CPU > EXP > IO
- Conformal coating for protection in harsh environments
- Wide -40 to 75°C operating temperature range

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Slots: 2 (for CPU modules)
- Module supported: CPU
- Conformal coating: Yes
- Operating temperature: -40 to 75°C
- Dimensions: 86 x 177 x 45.5 mm (3.39 x 6.97 x 1.79 in)
- Weight: 325 g (0.72 lb)
- MTBF: 3,554,206,267 hrs
- Housing: Plastic, DIN-rail mounting (rack mounting with optional kit)

FAQs

Q: What does the 65M-BMCPU02-CT-T backplane support?
A: It is a 2-slot backplane designed for CPU modules in the Moxa ioPAC 6500 series.

Q: Does this backplane have conformal coating?
A: Yes. The -CT variant is conformal coated for added protection in harsh industrial environments.

Q: What operating temperature range is supported?
A: The backplane is rated for operation from -40 to 75°C.

Q: How is the backplane mounted?
A: It has a plastic housing with DIN-rail mounting. Rack mounting is available with an optional kit.

Q: Can modules be installed without tools?
A: Yes. The ioPAC 6500 hardware uses a tool-free installation and hot-swap design.

Q: Is there a required module assembly order?
A: Yes. The ioPAC 6500 system assembly sequence is PWR, COM, CPU, EXP, then IO.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
