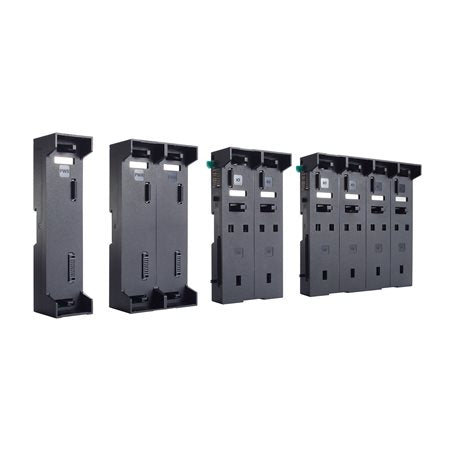

Moxa 65M-BMCPU01-CT-T | ioPAC 6500 CPU Backplane Module, 1 Slot, Conformal Coated

Authorised Moxa Partner

SKU:65M-BMCPU01-CT-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The ioPAC 6500 CPU backplane module is a single-slot controller backplane module that hosts one CPU module in a Moxa ioPAC 6500 modular programmable controller. The conformal coated, plastic-housed unit is rated for operation from -40 to 75°C, making it suited to harsh industrial and field cabinet deployments, and it mounts on a DIN rail.

As part of the ioPAC 6500 (65M) backplane range, it supports the fully modular architecture of the platform, with tool-free installation and a hot-swappable design. The platform supports IEC 61131-3 programming through the IINxpress IDE and a range of IT/OT protocols for connecting SCADA, plant information systems and cloud applications.

Features

- Single slot dedicated to the CPU module of an ioPAC 6500 controller
- Conformal coating for protection in harsh environments
- Wide operating temperature range of -40 to 75°C
- Tool-free installation and hot-swappable design
- Fully modular design for flexible deployment
- Supports multiple IT/OT protocols for SCADA, plant information system and cloud communication
- IEC 61131-3 programming in LD, FBD, SFC, IL and ST via the IINxpress IDE
- Turbo Ring, Turbo Chain and RSTP/STP network redundancy
- Developed according to IEC 62443-4-2 SL2

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Slots: 1 (for 1 CPU module)
- Conformal coated
- Housing: Plastic
- Operating temperature: -40 to 75°C (proper airflow required above 65°C)
- Storage temperature: -40 to 85°C
- Ambient relative humidity: 5 to 95% (non-condensing)
- Altitude: 2000 m
- Dimensions: 43 x 177 x 45.5 mm
- Weight: 170 g
- Installation: DIN-rail mounting, rack mounting with optional kit
- MTBF: 5,032,783,357 hrs

FAQs

Q: What does the 65M-BMCPU01-CT-T backplane module do?
A: It is the single-slot backplane that holds the CPU module in a Moxa ioPAC 6500 modular programmable controller.

Q: How many modules can it hold?
A: It provides 1 slot, intended for 1 CPU module.

Q: What temperature range is it rated for?
A: The operating range is -40 to 75°C. Proper airflow is required at temperatures above 65°C.

Q: Is it conformal coated?
A: Yes. The CT designation indicates conformal coating for added protection in harsh industrial environments.

Q: How is it mounted?
A: It mounts on a DIN rail. Rack mounting is possible with an optional kit.

Q: Which programming standard does the ioPAC 6500 platform support?
A: The platform supports IEC 61131-3 programming in LD, FBD, SFC, IL and ST through the IINxpress IDE utility.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
